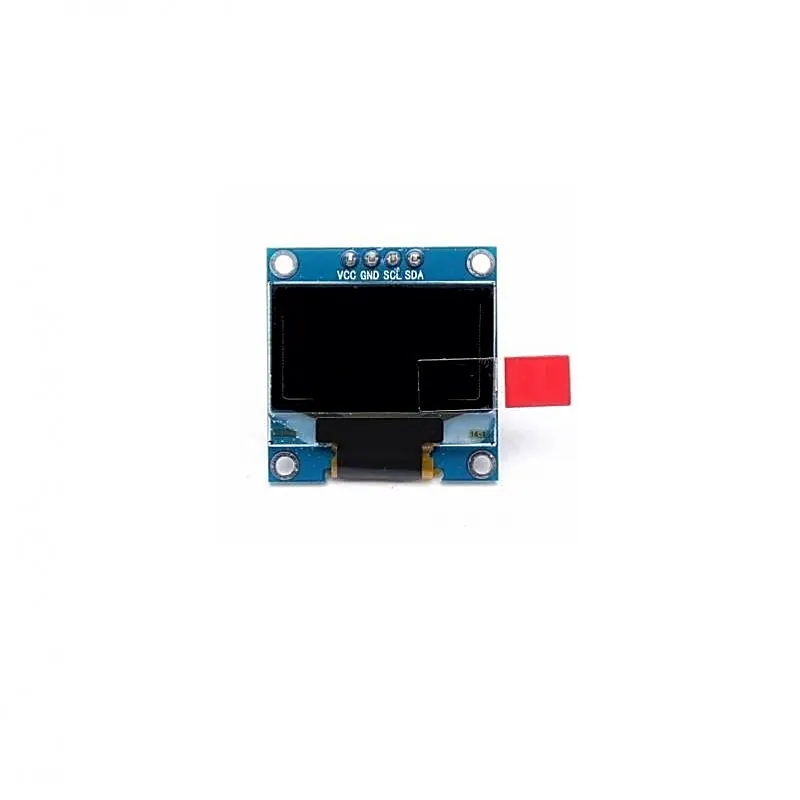

0.96 Inch I2C/IIC 128x64 OLED Display Module 4 Pin - Blue Color

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel display This 2.44 cm (0.96 Inch) I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I 2 C protocols. It is having a resolution of 128x64. The package includes display board, display, 4 pin male header pre-soldered to board. OLED monochrome 128x64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption. Interface pin for 4 PIN 128x64 OLED VCC : 3.3 volts 5 Volts GND : Ground SCL : Serial Clock SDA : Serial Data Features: Super High Brightness (Adjustable) Super High Contrast (Adjustable) Embedded Driver/Controller Display size: 2.44 cm (0.96 Inch) Resolution radio:128 x 64 Interface modes: I2C/IIC working voltage: 3.3V Control Chip: SSD1306 Package Includes: 1 x 2.44 cm (0.96 Inch) I2C/IIC 128x64 4pin OLED Display Module - Blue Color Specifications: Display Size 2.44 cm (0.96 inch) Pixel Colour Blue Resolution 128 x 64 Pixels Driving Voltage 3.3-5V Operating Temperature -40~70 Celsius Interface Type I2C IIC Length (cm) 2.75 cm Width (cm) 2.75 cm Height (cm) 1.1 cm Weight (gm) 7 gm
