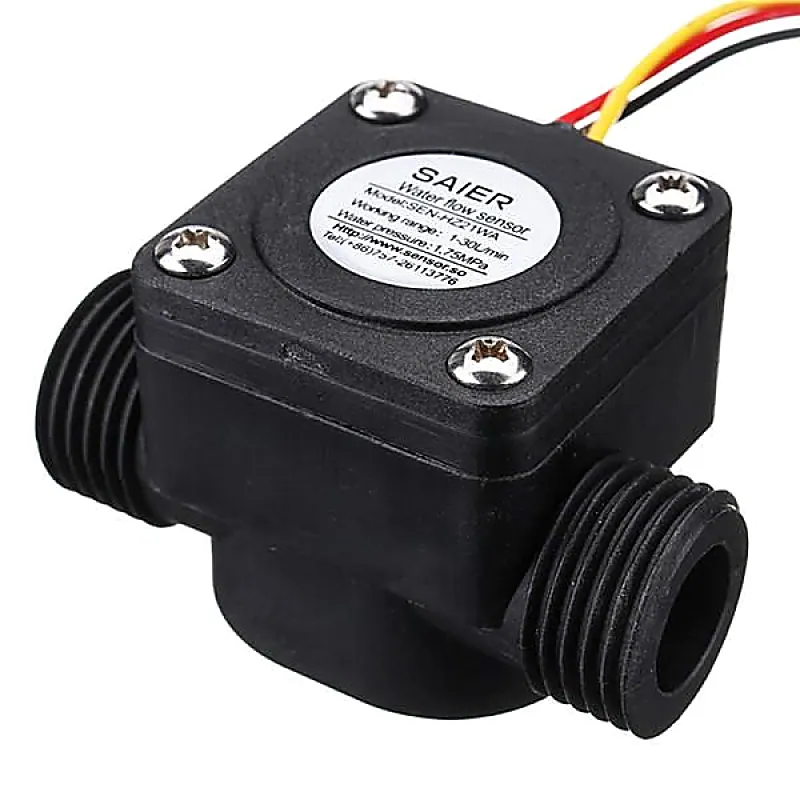

1/2 inch Water Flow Sensor SEN-HZ21WA

Use this flow sensor to measure the rate to flow of liquids. The sensor has a digital interface which makes it simple and easy to connect it to a microcontroller, Arduino or a Raspberry Pi. It requires no extra circuit to start measuring liquid flow rate. The sensor will have to be attached in the liquid line whose flow is to be measured. A pinwheel inside the sensor moves as the liquid flows through the sensor. A hall effect sensor within the sensor senses the rotation of the pinwheel and outputs a digital pulse for every rotation. By counting the pulses from the sensor, you can easily sense liquid flow through the sensor. This allows easy interface to microcontroller, Arduino, Raspberry Pi, etc. The sensor comes with three wires - Red (5V-12V), Black (Ground) and Yellow (Output pulse) This sensor is great for water testing, water cooling systems, measure liquid flow, etc. Specification: Model: SEN-HZ21WA Test range: 1~30L/min(m³/h) Connect way: 57.8 X 37 X 37 (in mm) outside diameter: 1/2 inch instantaneous flow pulse characteristics: F=[10Q]±10%, F means instantaneous pulse value(Hz),Q means instant flow Max. Working current: 15mA Insulativity: insulation resistance≥100MΩ Use voltage: DC 5V Fit media: Water Working pressure: 1.75MPa linearity: 0.01(%F.S.) Output signal: Moder Hysteresis: 0.01(%F.S.) Package Includes: 1 x 1/2 inch Water Flow Sensor -SEN-HZ21WA
