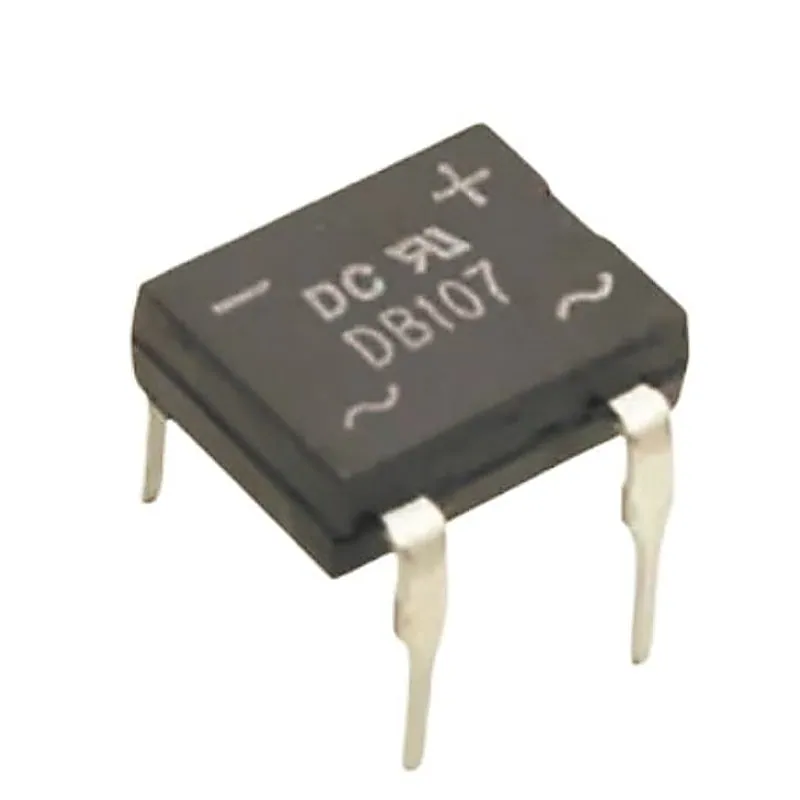

DB107 1 Amp Bridge Rectifier

The DB107 is a single phase 1.0 Amp Glass Passivated Bridge Rectifier Case: DB-M, Molded plastic. Mechanical Data:- • Terminals: Plated leads solderable per MIL-STD-202, Method 208 • Polarity: as marked on case • Mounting Position: Any • Marking: Type Number • Lead Free: For RoHS / Lead Free Version Features:- • Glass passivated die construction • Low forward voltage drop • High current capability • High surge current capability • Plastic material-UL flammability 94V-0 • This is a Pb − Free Device • “-HF” suffix is for Halogen Free Device • All SMC parts are traceable to the wafer lot • Additional testing can be offered upon request Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 1000 V VRWM VR VRMS RMS Reverse Voltage 700 V IF(AV) Average Forward Output Current (Note 1) @ TC =100°C 1 A IFSM Non-Repetitive Peak Forward Surge Current 8.3ms 45 A Single half sine-wave superimposed on rated load I2 t I2t Rating for Fusing (t < 8.3ms) 8.404 A 2s Related Document:- DB107 Rectifier Data Sheet
