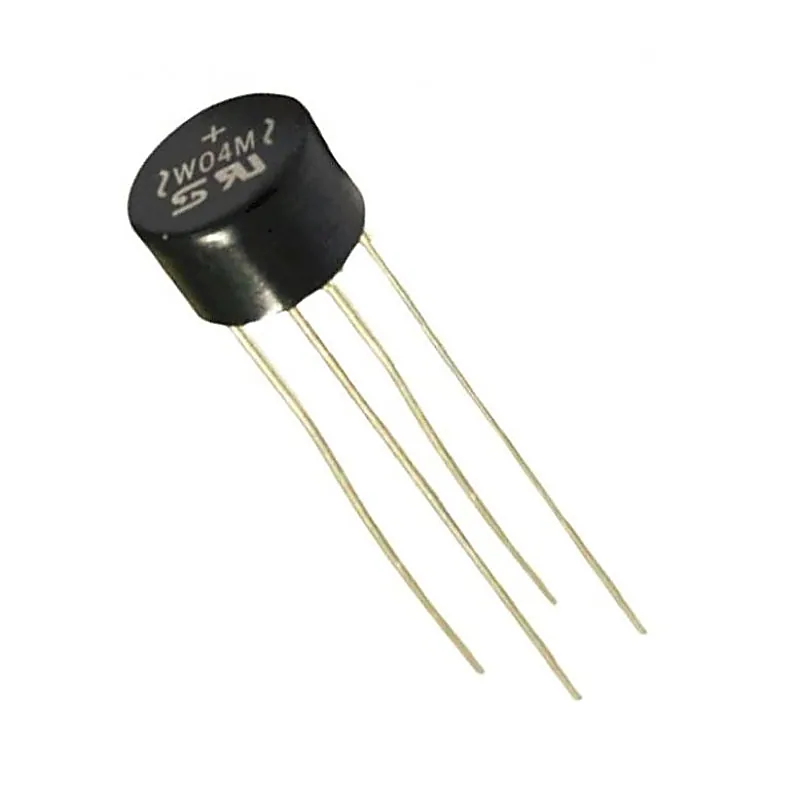

W04M 1A 400V Full Wave Bridge Rectifier
W04M 1A 400V Full Wave Bridge Rectifier
The W04 Rectifier is a Single Phase Glass Passivated Silicon Bridge Rectifier of a voltage range 50 to 400 Volts and Current 1 Amperes. Features:- • High reverse voltage to 400V • Surge overload ratings to 50 amperes peak • Good for printed circuit board assembly Mechanical Data:- • UL listed the re
+ 18% GST (added at checkout)
In stock — 10878 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The W04 Rectifier is a Single Phase Glass Passivated Silicon Bridge Rectifier of a voltage range 50 to 400 Volts and Current 1 Amperes. Features:- • High reverse voltage to 400V • Surge overload ratings to 50 amperes peak • Good for printed circuit board assembly Mechanical Data:- • UL listed the recognized component directory, file E94233 • Epoxy: Device has UL flammability classification 94V-O • Mounting position: Any • Weight: 1.20 grams Specification:- Symbol Parameter Values Units VRRM Maximum Recurrent Peak Reverse Voltage 50 V VRMS Maximum RMS Bridge Input Voltage 35 V VDC Maximum DC Blocking Voltage 50 V IO Maximum Average Forward Rectified Output Current at TA = 25°C 1.5 A TJ Operating Temperature Range 55 to + 150 °C TSTG Storage Temperature Range 55 to + 150 °C Related Document:- WO4 Rectifier Data Sheet
