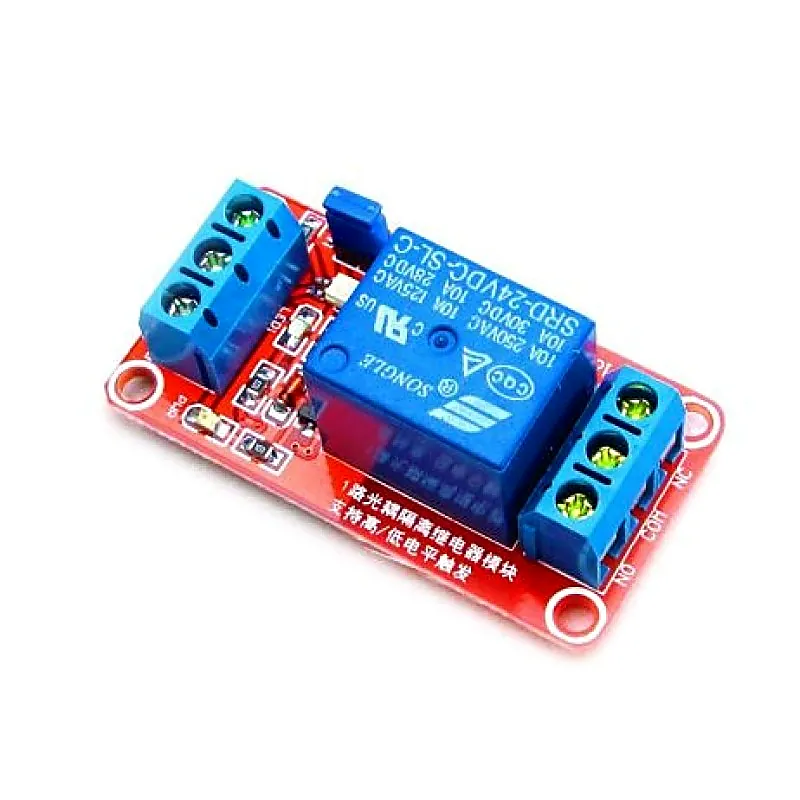

1 Channel Relay Module 24V High and Low Level Trigger Relay Module

1 Channel Relay Module 24V High and Low Level Trigger Relay Module is small and easy to use. Use it to control one 240V power appliance directly from Arduino, Raspberry Pi, and other microcontrollers or low-voltage circuits. Perfect for switching 240V applianceslights, fans, etc.and even high-power motors at lower voltages. The board uses a high-quality relay, which can handle a maximum of 10A/250 V AC or 15A/125 V AC. Each relay has all three connectionscommon, normally open, and normally closedbrought out to three-pin screw terminals, which make it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. The board can accept control inputs within a wide range of voltages, from 12V to 24V. Power input and relay control signals are brought to header pins on the board. Hence, the board can be easily interfaced with our development boards using jumper wires. Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability. Specifications and Features: Version: 24V Trigger: High or Low Level No. of Channel: 1 Equipped with high-current relay : 15A @ 125V AC or 10A @ 250V AC Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM) Dimensions (mm): 50 x 25 x 20 Product weight (g): 16g Package Includes: 1 x 1 Channel Relay Module 24V High and Low Level Trigger Relay Module
