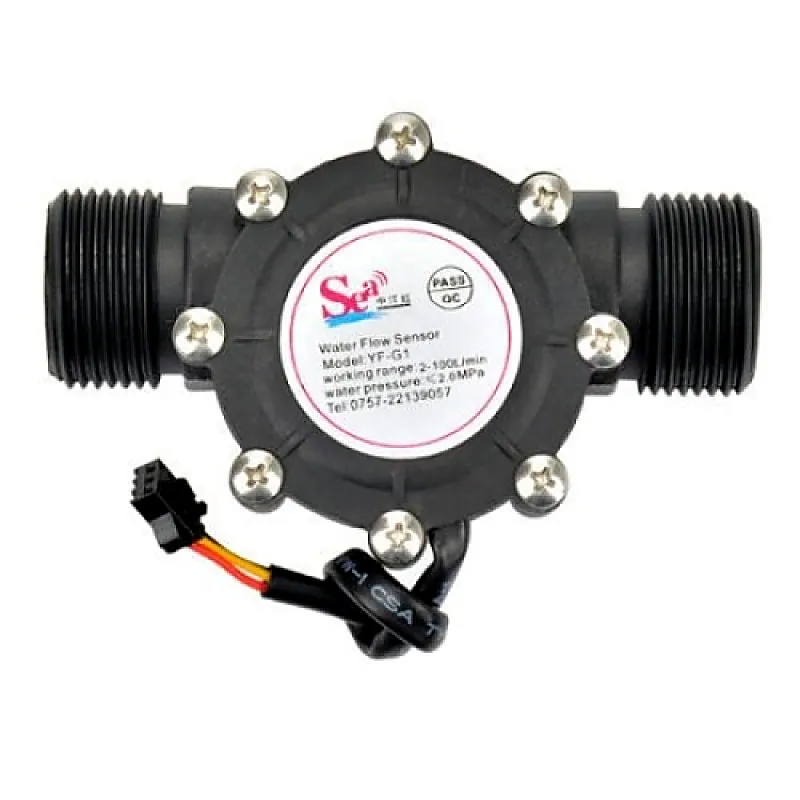

1 inch Water Flow Sensor - YF-G1 DN25
1 inch Water Flow Sensor - YF-G1 DN25
YF-G1 DN25 1 inch Water flow sensor used for flow measurement it consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. T
+ 18% GST (added at checkout)
In stock — 75 units ready
- Mini. Working Voltage: DC 4.5V
- Working Voltage: DC 5V~18V
- Flow Rate Range: 2~100L/min
- Water pressure resistance: = >2MPa
- Operating Temperature: = -20~85C
- Insulation resistance: = >100MΩ
- Characteristics of Flow pulse: f=(4.8*Q) Q=L/Min
- Accuracy: ±3%
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
YF-G1 DN25 1 inch Water flow sensor used for flow measurement it consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine. Specifications of 1 inch Water Flow Sensor - YF-G1 DN25 :- Mini. Working Voltage: DC 4.5V Working Voltage: DC 5V~18V Flow Rate Range: 2~100L/min Water pressure resistance: = >2MPa Operating Temperature: = -20~85C Insulation resistance: = >100MΩ Characteristics of Flow pulse: f=(4.8*Q) Q=L/Min Accuracy: ±3% Features of 1 inch Water Flow Sensor - YF-G1 DN25 :- Compact, Easy to Install High Sealing Performance High Quality Hall Effect Sensor RoHS Compliant
