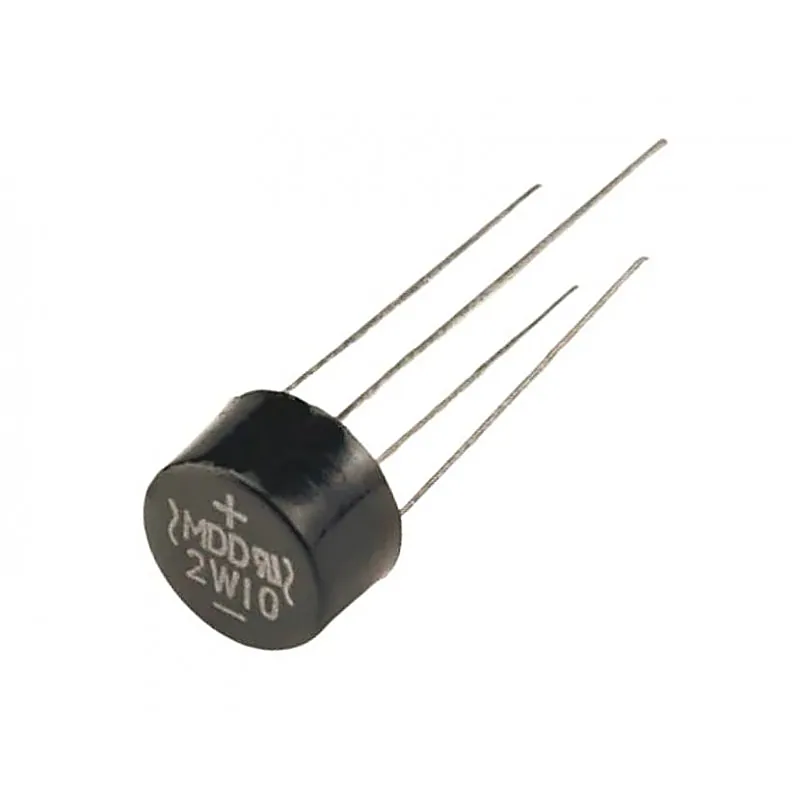

W10M 1.5A 1000V Full Wave Bridge Rectifier

The 1.5 Amp Full Wave Bridge Rectifier (W10M) is a single phase Bridge Rectifier. Voltage Range is 50 to 1000 Volts and Current is 1.5 Amperes. Features:- • Low cost • This series is UL recognized under component index • High forward surge current capability • Ideal for printed circuit board • High temperature soldering guaranteed: 260 oC/10 second, 0.375”(9.5 mm) lead length at 5 lbs. (2.3 kg) tension. Mechanical Data:- • Case: Molded plastic body • Terminal: Lead solderable per MIL-STD-202 E method 208 C. • Polarity: Polarity symbols molded on case • Mounting position: Any • Weight: 0.042 ounce, 1.2 grams Specification:- Symbol Parameter Value Units VRRM Maximum Repetitive Peak Reverse Voltage 100 V VRMS Maximum RMS Voltage 70 V VDC Maximum DC Blocking Voltage 100 V I(AV) Maximum Average Forward Rectified Output Curren 1.5 A IFSM Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load 50 A VF Maximum Instantaneous Forward Voltage at 1.0A 1 V CJ Typical Junction Capacitance 15 PF RθJA Typical Thermal Resistance 40 ℃/W TJ Operating Temperature Range -55 to +125 ℃ TSTG Storage Temperature Range 55 to +150 ℃ Related Document:- W10M Rectifier Data Sheet
