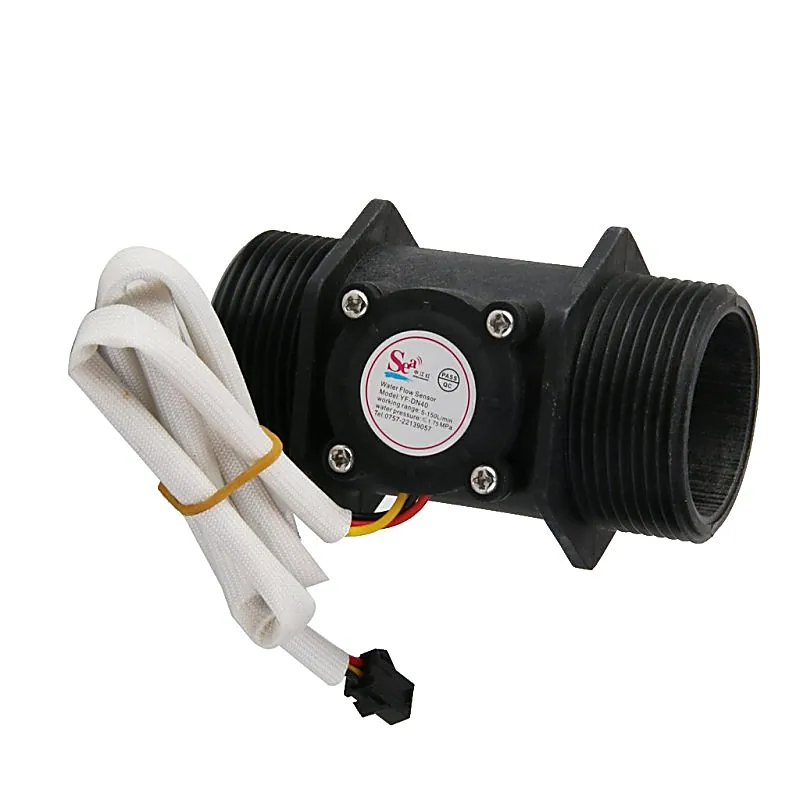

1.5 inch Water Flow Sensor - YF-DN40

YF-DN40 1.5 inch is a plastic body water flow sensor that contains a water rotor and a hall-effect sensor and is used for flow measurement for industrial application . When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses. Features of 1.5 inch Water Flow Sensor - YF-DN40 :- Hydrostatic pressure> 1.75MPa meet Operating voltage range DC 5 ~ 24V comply Insulation resistance> 100M> 100M Accuracy in 1 ~ 120L / MIN ± 2% in line Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet Low temperature test at -20'C temperature placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value in line High-temperature test temperature at 85'C placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value 11/2" DN40 flow rate 5~150L/min Plastic Hall Turbine flow sensor meter switch valve control liquid flow sensor Specifications 1.5 inch Water Flow Sensor - YF-DN40 :- Product item no. :YF-DN40 Material : Plastic Function : Sensor , flow rate control Thread size : BSP 1 1/2” Size:L 92x OD46 X1.5" Color : Black color
