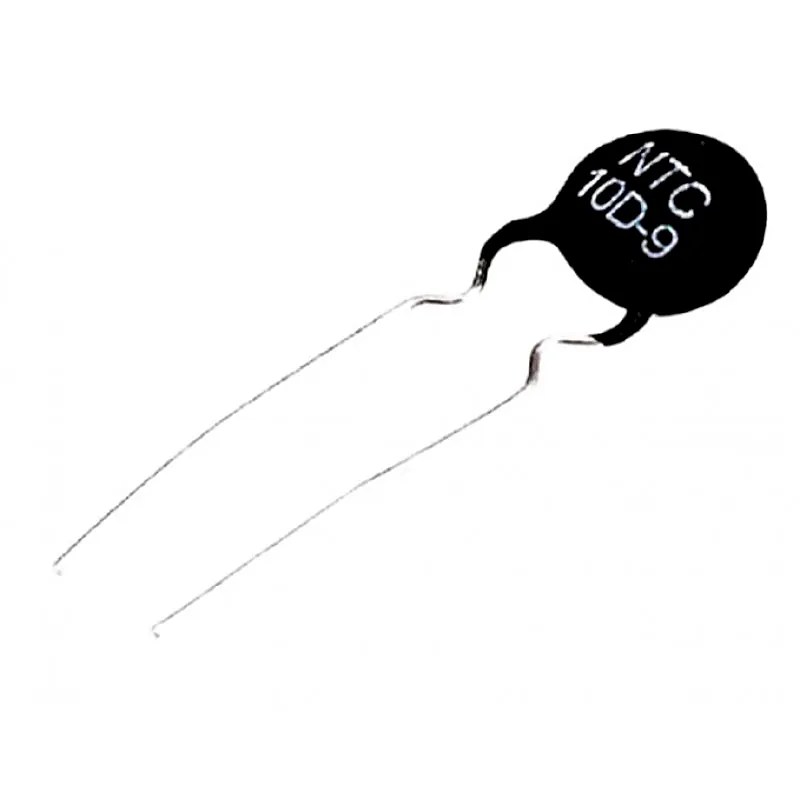

10D-9 NTC Thermistor

10D9 NTC Thermistor (NTC-Negative Temperature Coefficient), these R-T curve (Resistance-Temperature) matched thermistors are small, high quality, epoxy encapsulated, precision devices. These epoxy-coated interchangeable chip thermistors offer true interchangeability over wide temperature ranges, permitting the circuit designer to standardize circuitry. This eliminates the need to individually adjust circuits and allows the thermistors to be easily replaced without the need for re-calibration. Features:- Come with a broad resistance range Thermistor cost is economical Provided with lacquer-coated thermistor disk Copper leads have a coating of tin. Having lead spacing of 5.0 mm Component remarked with resistance and tolerance Good stability, durability in the environment Provide high accuracy in resistance and B-constant The product is not containing lead Specifications:- Resistance (Ω) - 10 ohm Tolerance(%) : 1 Temperature Co-efficient : NTC Operating Temperature Range (°C) : -55 to 200 Diameter (mm) : 9 Package Includes:- 1 x 10D-9 NTC Thermistor
