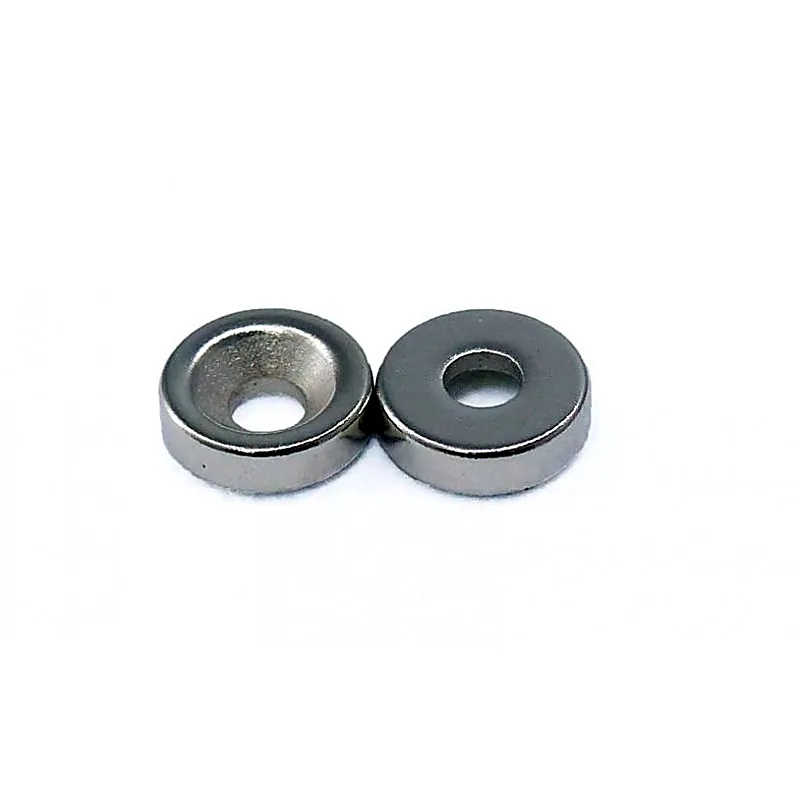

10mm x 3mm x 3mm (10x3x3 mm) Neodymium Ring Countersunk Magnet

10mm x 3mm x 3mm (10x3x3 mm) Neodymium Ring Countersunk Magnet

10mm x 3mm x 3mm (10x3x3 mm) Neodymium Ring Countersunk Magnet

SKU: EPI826

This 10mm x 3mm x 3mm (10x3x3 mm) Neodymium Ring Countersunk Magnet is small sized facing of countersunk neodymium magnet and perfect for any carpentry or home improvement projects. The specially designed countersunk hole enables the convenient use of flat head countersunk screws for securing to any

₹38

+ 18% GST (added at checkout)

In stock — 1695 units ready

  • Specially designed countersunk hole works with flat head countersunk screws
  • Facing pair polarity allows single or dual objects installation
  • Outer diameter : 10mm
  • Inner Diameter : 3mm
  • Thickness : 3mm
  • Plating : NiCuNi
  • Magnetisation : Thru 3mm thickness
  • Max. Operating Temperature: 80 ° C
  • Tolerance : ± 0.1 mm
1

Buying in bulk?

Get volume pricing, GST invoicing and stock availability for larger quantities of this item.

Enquire on WhatsApp
Flat ₹59 shipping
7-day replacement
Genuine, tested stock

This 10mm x 3mm x 3mm (10x3x3 mm) Neodymium Ring Countersunk Magnet is small sized facing of countersunk neodymium magnet and perfect for any carpentry or home improvement projects. The specially designed countersunk hole enables the convenient use of flat head countersunk screws for securing to any flat or recessed area. Features:- Specially designed countersunk hole works with flat head countersunk screws Facing pair polarity allows single or dual objects installation The possibilities are endless… Flushed Fit nicely into a diameter 10mm hole. Ideal for Magnetising, wood, plastic, Aluminium, thick cardboard objects. Please note that all neodymium magnets are brittle in nature and may break if collide with another neodymium magnet due to the extreme attraction force. – Handle and separate magnet with care – Only separate them when about to install or use – Do not allow magnet to jump together after separation – Do not over tighten magnet with power tools Specifications:- Outer diameter : 10mm Inner Diameter : 3mm Thickness : 3mm Plating : NiCuNi Magnetisation : Thru 3mm thickness Max. Operating Temperature: 80 ° C Tolerance : ± 0.1 mm Package Includes:- 1 x 10mm x 3mm x 3mm (10x3x3 mm) Neodymium Ring Countersunk Magnet
