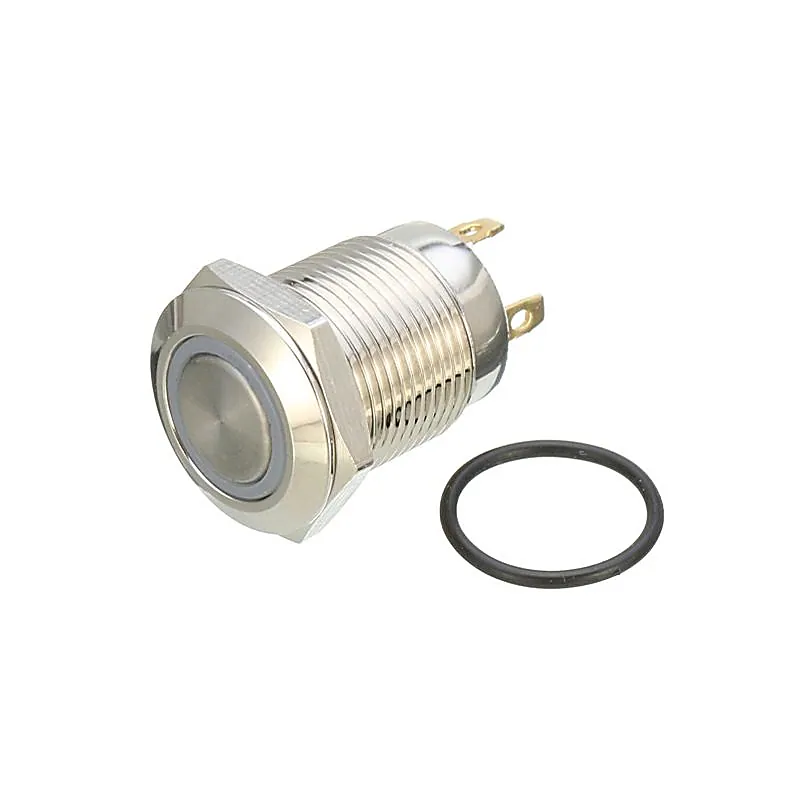

12mm 12V Ring Light Self-Lock Non-Momentary Metal Switch-Green Light

This Self-lock Non- Momentary Metal Push button Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Green LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around push area of switch. These switches are available in various LED light Colours, you can choose for your application purpose This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again. A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. With glowing, your desired colourful light ring itself in switch gives an attractive design and premium look which compliments quality panels and dashboards. The switch comes Stainless steel body with an IP67 protection rating to provide the best environmental protection and long operational life. This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 12 VDC while the LED is rated for 5V. Features: Stainless steel material for long-term use High-end appearance and good to touch Inbuilt Colorful Ring illumination LED Available in Various LED Color Independent LED terminals Bright daylight LEDs Single pole push to make and Push to break Function Front and rear panel seal to IP67 Integral supply resistors TVS protection Good electrical conductivity Non-Momentary type push-button switch Rubber ring and hexagon nut to fix, Waterproof and Dustproof 12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-button Package Includes: 1 x 12mm 12V Ring Light Self-Lock Metal Switch-Green Light Specifications: Operating Voltage (VDC) 12 Max. Operating Current (mA) 2A MAX Light Color Green On/Off Function Push to ON and Push to OFF Switch Type Momentary/Latching Mounting Hole Diameter (mm) 12 mm Contact Type Solder Type Contact Material Silver Alloy Contact Resistance 50 M Insulation Resistance (M) 1000 Operating Temperature Range (C) -20 to 55 Operation Force About 3-5N Operation Stroke 2-5mm Body Material Stainless Steel and Plastic Mech. & Electrical Lifecycle 50000 Protection Standard IP66
