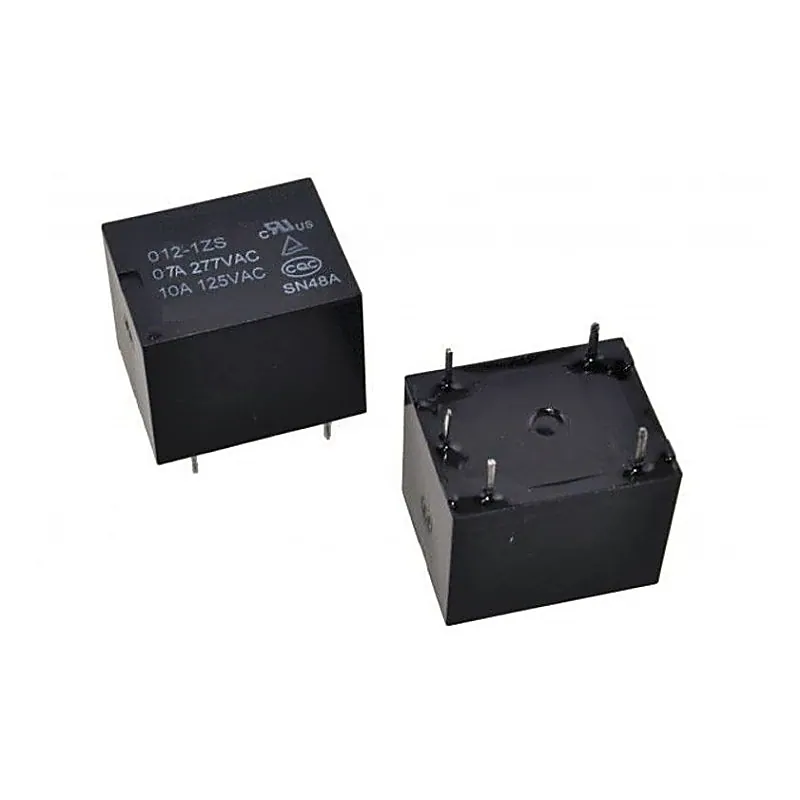

12V 10A PCB Mount Sugar Cube Relay - SPDT

Power Relays with a coil rated voltage of 12V DC and SPDT contacts with a 10A rating. The Relays have 5 pins and are very good quality with a long operational life. Compact and sealed construction. It is especially suitable for harsh environments such as corrosion, humidity, dust, explosion protection, and frequent switching. It can control small motors, incandescent lamps, indicator lights, low-power power supplies, intelligent instrumentation, and various solenoid valves, etc. It can also be used as a pusher for high-power electromagnetic contactors. Widely used in the field of petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities, etc. Applications:- Domestic control and switching Car control switching box HVAC Home Automation and Security system Motor Control System etc. Specifications:- Type: SPDT Coil Voltage Rating: 12V Current: 10A Contact capacity: 7A@250VAC 12A@120VAC Pin counts: 5 Mounting Type: Through-hole Length: 18.5mm Width: 15mm Height: 15mm Weight: 10gm Package Includes:- 1 x 12V 10A PCB Mount Relay - SPDT
