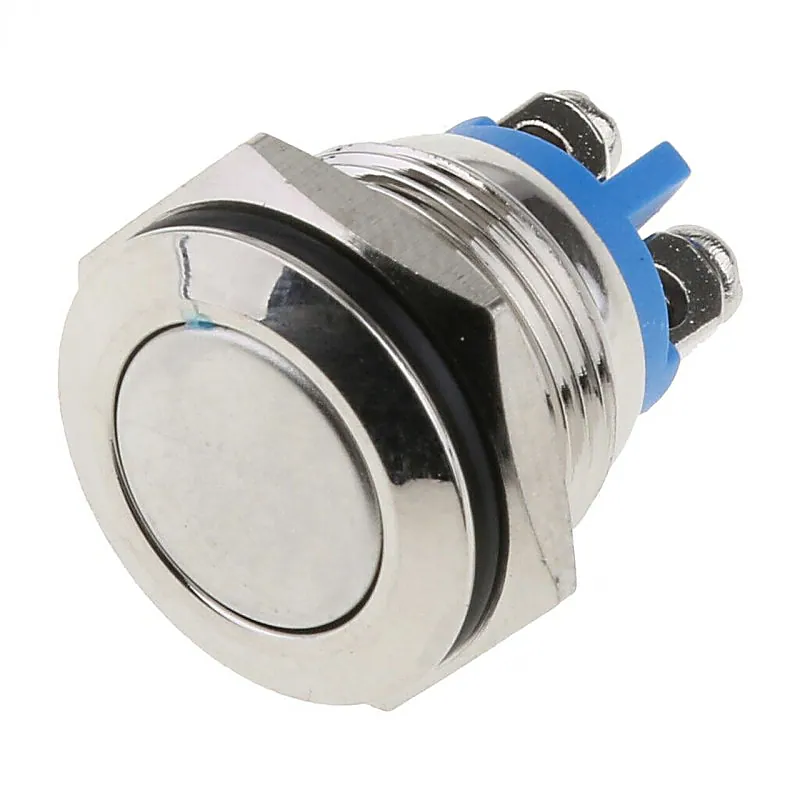

16mm 220V Latching Metal Push-button Switch

Metal Pushbutton Latching is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount latching switch. It is a SPDT with 16mm threading and 1mm pitch. This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again. A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. This button is perfect for basic On/Off functions. Overall length (including leads) is 1.5" and has small solder lugs for connection. These Latching buttons are rated up to 3A and 250VAC. A latching push button function also referred to as maintained, means that it remains in a position until pressed again. It required to be pressed down or touched multiple times to either turn on or off the device or function. It aims to push to make and push to break a cycle and can also be referred to as normally closed push switches. Specification: On/Off Function : Push to ON and Push to OFF Switch Type : Non-Momentary/Latching Mounting Hole Diameter (mm) : 16 mm Contact Type : Solder Type Contact Material : Silver Alloy Contact Resistance : ≤50 MΩ Insulation Resistance (MΩ) : ≥1000 Operating Temperature Range (°C) : -20 to 55 Operation Force : About 3-5N Operation Stroke : 2-5mm Body Material : Stainless Steel and Plastic Mech. & Electrical Lifecycle : ≈ 50000 Features: Non-momentary type push-button switch Stable and reliable performance. Easy disassembly type. Easy to clean and maintain. Excellent quality and long service life. Has been widely applied in used for circuit control in electromagnetic starter, contactor, relay and other electric circuits. Rating: 6A 12v DC, 3A 250v AC Package Includes: 1 x 16mm 220V Latching Metal Push button Switch
