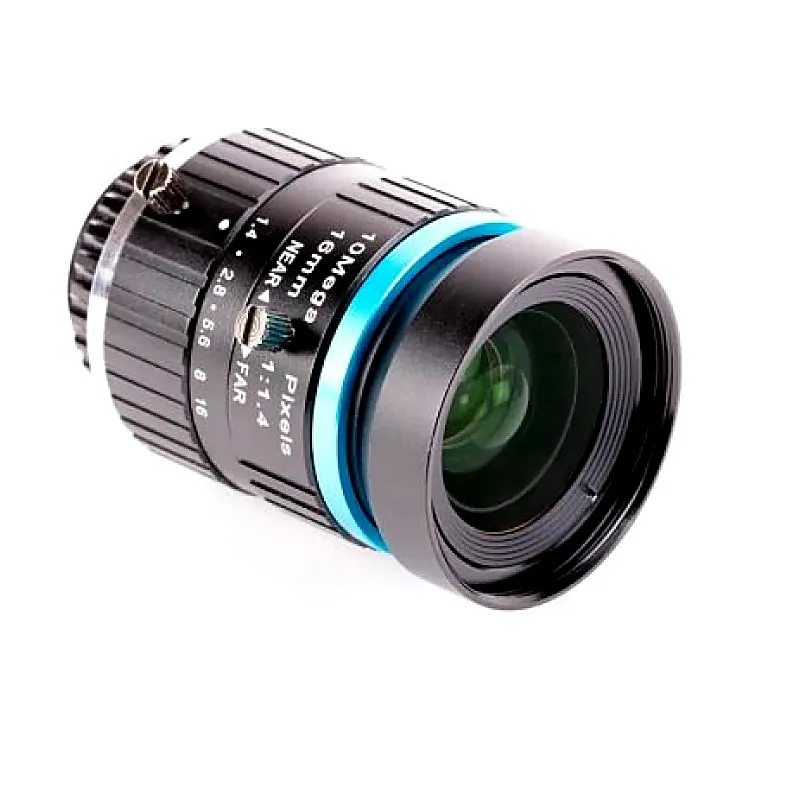

16mm Telephoto Lens for Raspberry Pi High Quality Camera

The 16 mm lens provides a higher quality image than the 6 mm lens. It has a narrow-angle view which is more suited to viewing distant objects. Ensure the C-CS adapter that comes with the High-Quality Camera is fitted to the lens. The lens is a C-mount device, so it has a longer back focus than the 6 mm lens and therefore requires the adapter. Rotate the lens and C-CS adapter clockwise all the way into the back focus adjustment ring. The back focus adjustment ring should be screwed in fully. Use the back focus lock screw to make sure it does not move out of this position when adjusting the aperture or focus. To adjust the aperture, hold the camera with the lens facing away from you. Turn the inner ring, closest to the camera, while holding the camera steady. Turn clockwise to close the aperture and reduce image brightness. Turn anti-clockwise to open the aperture. Once you are happy with the light level, tighten the screw on the side of the lens to lock the aperture into position. To adjust focus, hold the camera with the lens facing away from you. Turn the focus ring, labeled “NEAR FAR”, anti-clockwise to focus on a nearby object. Turn it clockwise to focus on a distant object. You may find you need to adjust the aperture again after this. Features of 16mm Telephoto Lens for Raspberry Pi High Quality Camera :- High Level of zoom for advanced applications Suitable for Distance photography Thumbscrew Adjustment for easy fitting Front and back covers for protection Specifications of 16mm Telephoto Lens for Raspberry Pi High Quality Camera :- Image Format 1" Focal length 16mm Resolution 10 Megapixel Aperture F1.4 to F16 Mount C Field Angle 1" 44.6°— 33.6° 2/3" 30.0°— 23.2° 1/1.8"€ 24.7°— 18.6° 1/2" 21.8°— 16.4° Distortion 1" (-0.7%) 1/2" (-0.5%) 1/3" (-0.15%) M.O.D 0.2m Back focal length 17.53mm Optical length 67.53mm Dimensions 39x50mm Weight 133.7g Shipment Dimensions 8 × 8 × 9 cm Package Includes: 1 x 16mm Telephoto Lens for Raspberry Pi High-Quality Camera
