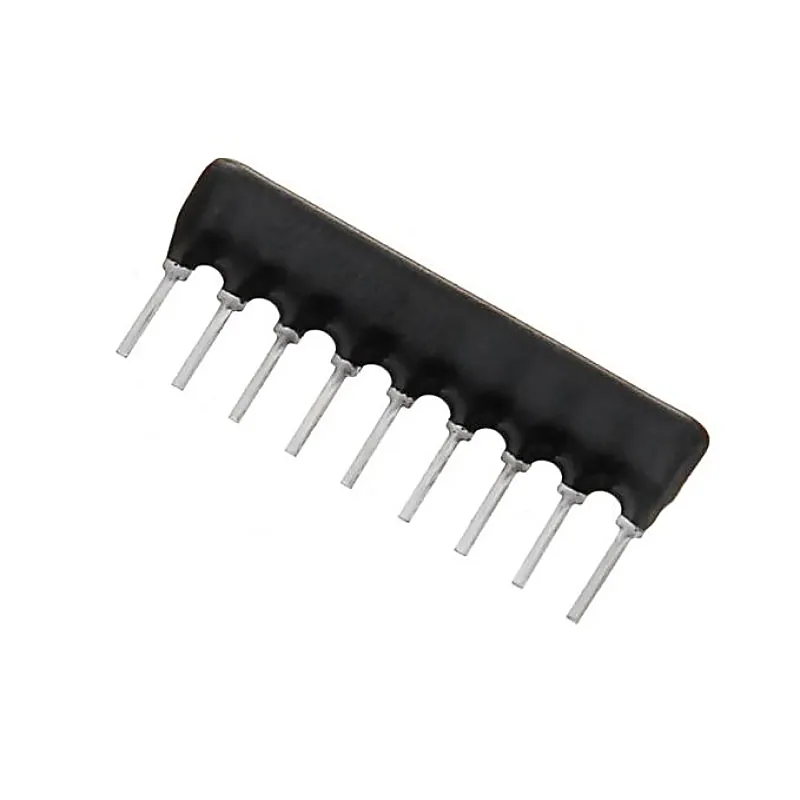

1K ohm 9 Pin Resistor Network - SIP
1K ohm 9 Pin Resistor Network - SIP
It is a 1K Ohm Through Hole Resistor Network. The resistor array is a passive nine-terminal electrical component that serves as eight 1K ohms resistances and one common ground. Maximum short time overload Minimum insulation resistance Dielectric withstanding voltage: No evidence of flashover, mechan
+ 18% GST (added at checkout)
In stock — 525 units ready
- Maximum short time overload
- Minimum insulation resistance
- Dielectric withstanding voltage: No evidence of flashover, mechanical damage, arcing or insulation breakdown
- Maximum terminal strength
- Maximum resistance to soldering heat
- Resistor | Resistance | Through-hole
- Resistance : 1K Ohms
- Tolerance : ±5%
- Maximum Working Voltage : 100(V)
- Maximum Overload Voltage 150(V)
- Mounting Type : Through Hole
- Power Rating : 1/2 Watt
- Temperature Coefficient : ±200ppm/°C
- Operating Temperature : -55°C ~ 155°C
- Color : Black
- Pins : 9
- Resistors : 8
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
It is a 1K Ohm Through Hole Resistor Network. The resistor array is a passive nine-terminal electrical component that serves as eight 1K ohms resistances and one common ground. Maximum short time overload Minimum insulation resistance Dielectric withstanding voltage: No evidence of flashover, mechanical damage, arcing or insulation breakdown Maximum terminal strength Maximum resistance to soldering heat Resistor | Resistance | Through-hole Specification:- Resistance : 1K Ohms Tolerance : ±5% Maximum Working Voltage : 100(V) Maximum Overload Voltage 150(V) Mounting Type : Through Hole Power Rating : 1/2 Watt Temperature Coefficient : ±200ppm/°C Operating Temperature : -55°C ~ 155°C Color : Black Pins : 9 Resistors : 8 Package Includes:- 1 x 1K ohm 9 Pin Resistor Network - SIP
