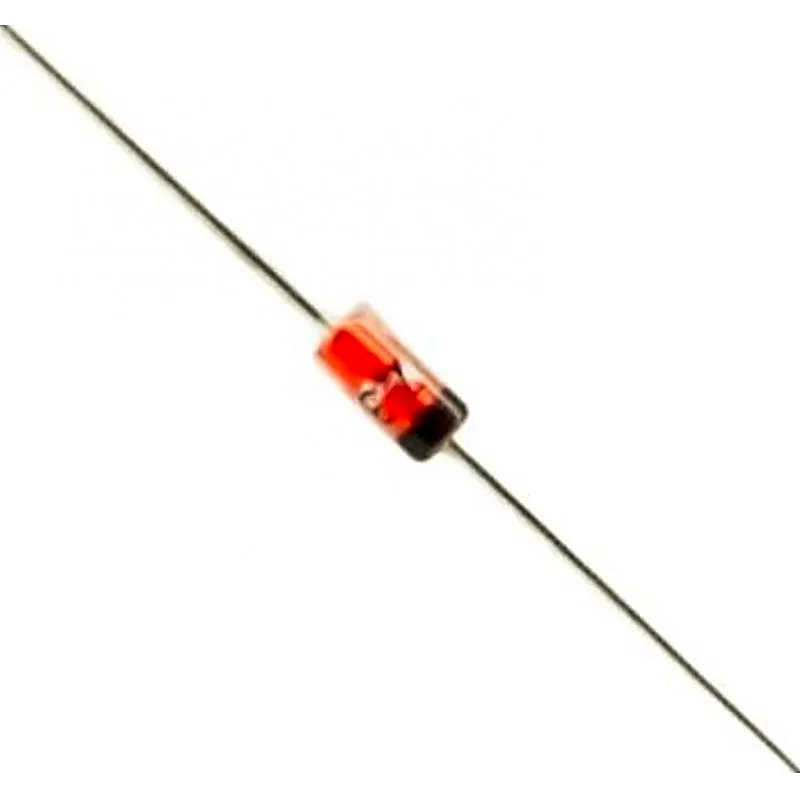

1N34 Germanium Diode
1N34 Germanium Diode
The 1N34A is a point contact diode in a DO7 type package employing N−form Germanium and gives an efficient and excellent linearity when used in TV image detection, FM detection, radio AM detection, etc. Specification:- Symbol Parameter Value Units PIV Peak Inverse Voltage, Repetitive (IR = 1mA) 65 V
+ 18% GST (added at checkout)
In stock — 1935 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 1N34A is a point contact diode in a DO7 type package employing N−form Germanium and gives an efficient and excellent linearity when used in TV image detection, FM detection, radio AM detection, etc. Specification:- Symbol Parameter Value Units PIV Peak Inverse Voltage, Repetitive (IR = 1mA) 65 V VR Reverse Voltage DC 20 V IFSM Peak Forward Surge Current, Non−Repetitive (t = 1sec) 0.5 V IFSR Peak Forward Surge Current, Repetitive 200 m A IFSM Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load 50 A IO Average Rectified Output Current 1 V TJ Operating Junction Temperature 75 ℃ Tstg Storage Temperature Range 55 to +75 ℃ Related Document:- IN34A Diode Data Sheet
