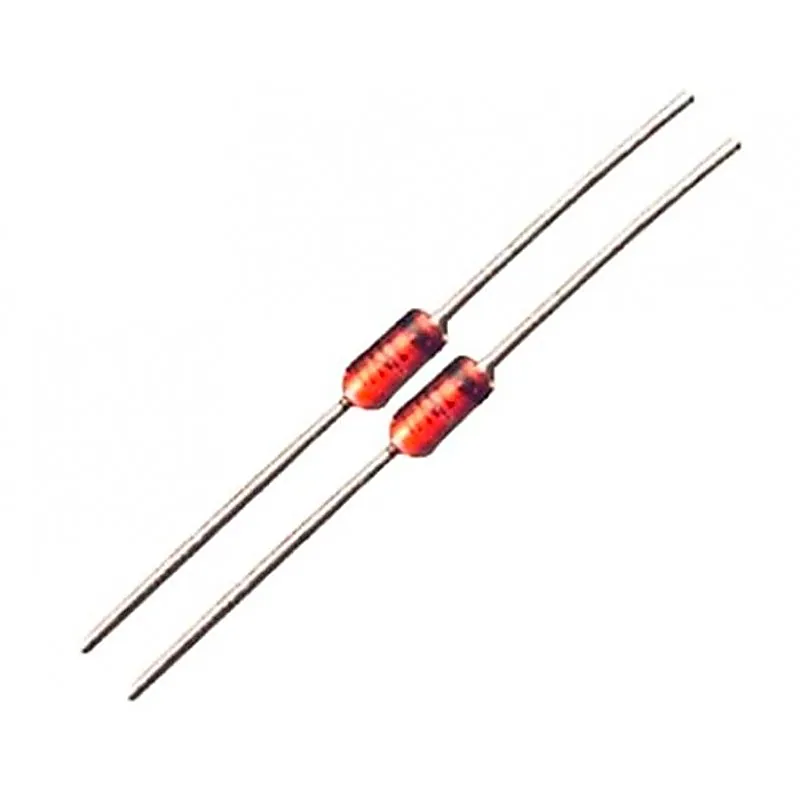

1N914 Small Signal Fast Switching Diode - 2 pieces pack

The 1N914 is high-speed switching diodes fabricated in planar technology, and encapsulated in a hermetically sealed leaded glass SOD27 (DO-35) package. Features:- • High switching speed: max. 4 ns • Continuous reverse voltage :max. 75 V • Repetitive peak reverse voltage :max. 100 V • Repetitive peak forward current: max. 225 mA • Pb / RoHS Free • Hermetically sealed leaded glass SOD27 (DO-35) package • Fast switching speed • High reliability and conductance • For General Purpose Switching Applications Mechanical Characteristics:- • Case: DO-35, Glass • Terminals: Solderable per MIL-STD-202, Method 208 • Marking: Type Number • Weight: 0.013 grams (approx.) Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 75 V VRWM Working Peak Reverse Voltage 75 V VR DC Blocking Voltage 75 V VRM Non-Repetitive Peak Reverse Voltage 100 V VR(RMS) RMS Reverse Voltage 53 V IO Average Rectified Output Current 75 m A IFSM Non-Repetitive Peak Forward Surge Current 1 A TJ Operating Junction Temperature Range − 65 to +175 °C Tstg Storage Temperature Range − 65 to +175 °C Related Document:- IN914 Diode Data Sheet
