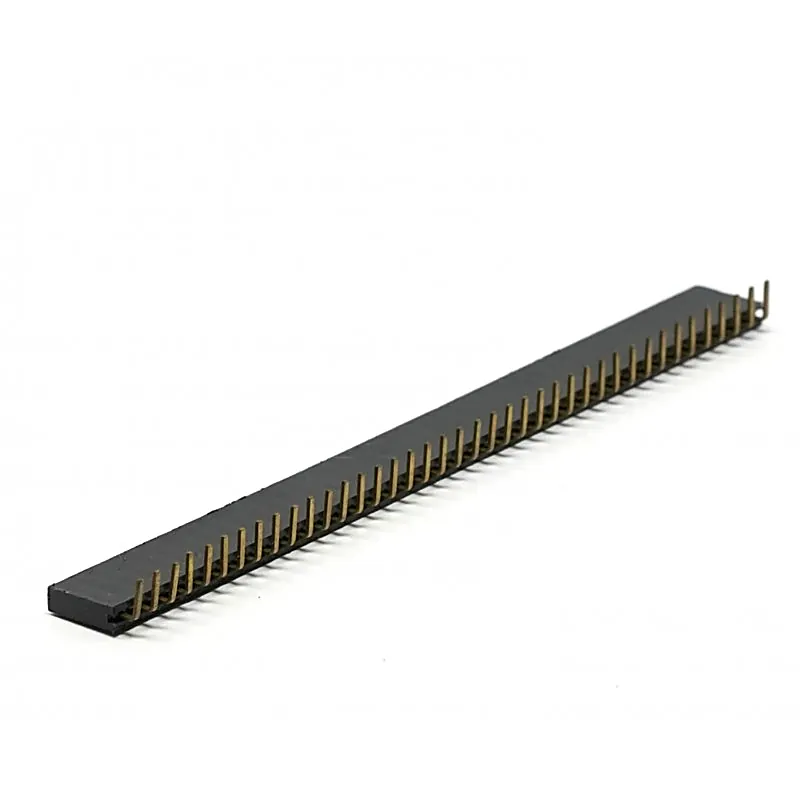

1x40 2.54mm Pitch Female Berg Strip Header (Right Angle)

1 x 40 Berg Strip Right Angle Female Connector. Break it to the required number of pins. Also, custom PCBs or general custom headers use these types of connectors. These connectors are bent at a 90 angle, which is suitable for many applications where the connectors are many times like prototyping. Specifications and Features: Number of Pins: 40 Pin Spacing (pitch): 2.54 mm Length of the Strip: 103 mm Width of the Strip: 2.4 mm Strip Height: 11 mm (with contact points) Pin height: 3mm Weight: 0.017 kg. Package Includes: 1 x 1x40 2.54mm Pitch Female Berg Strip Header (Right Angle) Specifications :- Connector Header Strip Gender Female Mounting Type Through Hole Pin Spacing (mm) 2.54 Contact Material Phosphor Bronze Contact Resistance 20m Insulation Material PBT UL 94V-0 Insulation Resistance (M) 1000 Length (mm) 103 Width (mm) 2.4 Height (mm) 8 Weight (gm) 1
