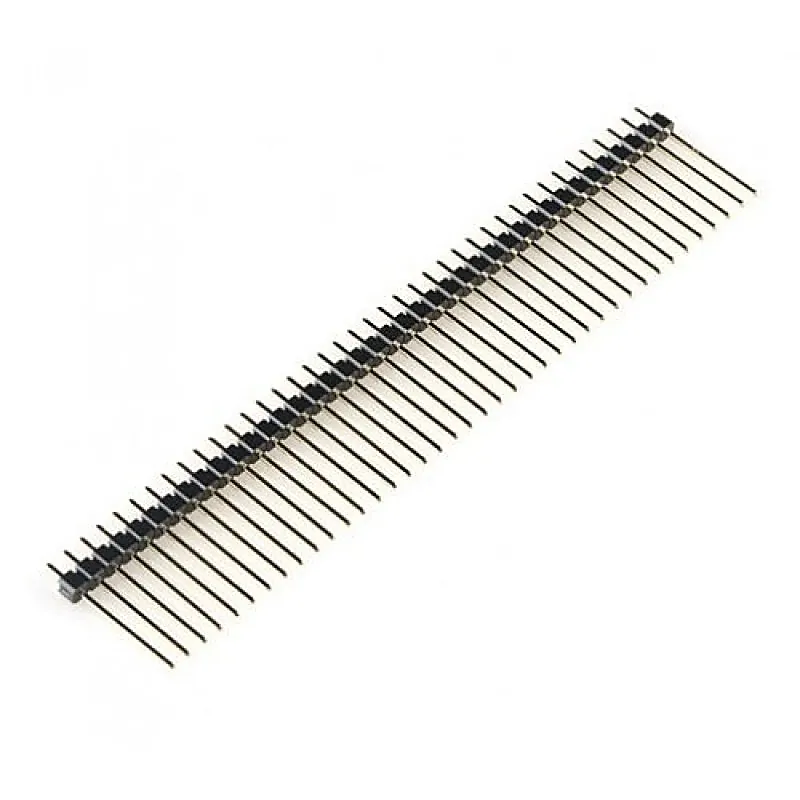

1x40 Pin 2.54mm Pitch Male Single Row Straight Long Header Berg Strip
1x40 Pin 2.54mm Pitch Male Single Row Straight Long Header Berg Strip
It is a 2.54mm 1x40 Pin Male Single Row Straight Long Header Strip. It has one row of 40 pins. Ideal for through-hole mounting. It has 20mm long pins and the plastic spacer can be adjusted according to the application. Package Includes: 1 x 1x40 Pin 2.54mm Pitch Male Single Row Straight Long Header
+ 18% GST (added at checkout)
In stock — 265 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
It is a 2.54mm 1x40 Pin Male Single Row Straight Long Header Strip. It has one row of 40 pins. Ideal for through-hole mounting. It has 20mm long pins and the plastic spacer can be adjusted according to the application. Package Includes: 1 x 1x40 Pin 2.54mm Pitch Male Single Row Straight Long Header Berg Strip Specifications :- Connector Header Strip Gender Male Mounting Type Through Hole Pin Length (mm) 20 Pin Spacing (mm) 2.54 Contact Material Phosphor Bronze Contact Resistance 20m Insulation Material PBT UL 94V-0 Insulation Resistance (M) 1000 Length (mm) 101 Width (mm) 2.4 Height (mm) 17 Weight (gm) 3
