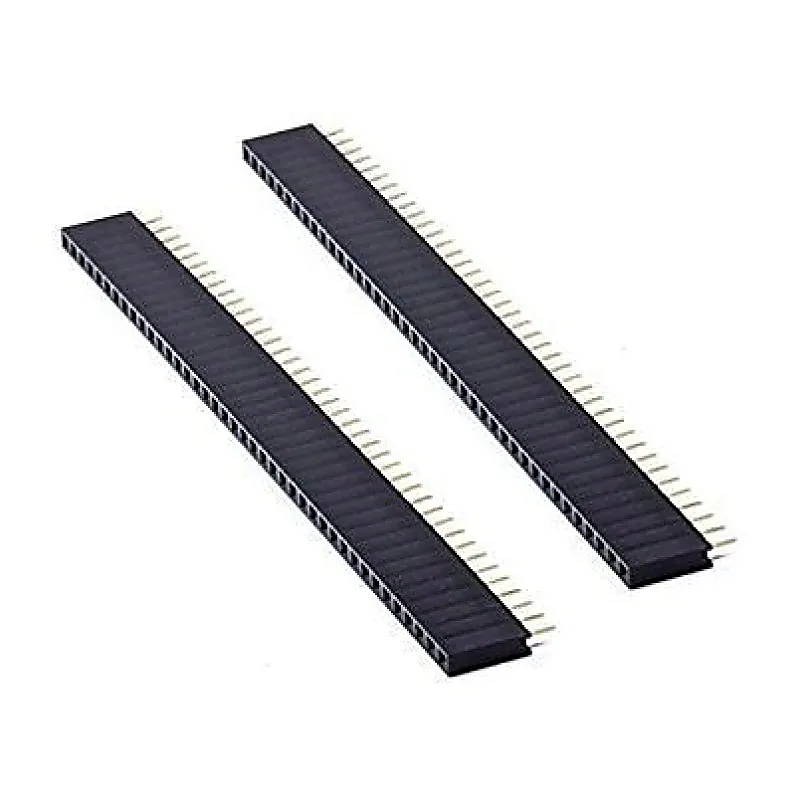

1x40 Pin 2mm Pitch Female Berg Strip - Straight
1x40 Pin 2mm Pitch Female Berg Strip - Straight
This is 40 pins single row female berg strip/header. It can be cut into any desired sizes with the wire cutter. The pitch for this header is standard 2.0mm. Specifications and Features: Number of Pins: 40. Pin Spacing(pitch): 2 mm. Strip Length: 80.60 mm. Strip width : 2.49 mm. Strip Height: 4.4 mm(
+ 18% GST (added at checkout)
In stock — 72 units ready
- Number of Pins: 40.
- Pin Spacing(pitch): 2 mm.
- Strip Length: 80.60 mm.
- Strip width : 2.49 mm.
- Strip Height: 4.4 mm(Only Plastic Part).
- Strip Height: 6.8 mm (with contact Points).
- Pin height: 2.2mm.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is 40 pins single row female berg strip/header. It can be cut into any desired sizes with the wire cutter. The pitch for this header is standard 2.0mm. Specifications and Features: Number of Pins: 40. Pin Spacing(pitch): 2 mm. Strip Length: 80.60 mm. Strip width : 2.49 mm. Strip Height: 4.4 mm(Only Plastic Part). Strip Height: 6.8 mm (with contact Points). Pin height: 2.2mm. Package Includes: 1 x 1x40 Pin 2mm Pitch Female Berg Strip - Straight Specifications :- Number of Pins 40 Pitch (mm) 2 Length (mm) 81 Width (mm) 2.7 Height (mm) 7 Weight (gm) 4
