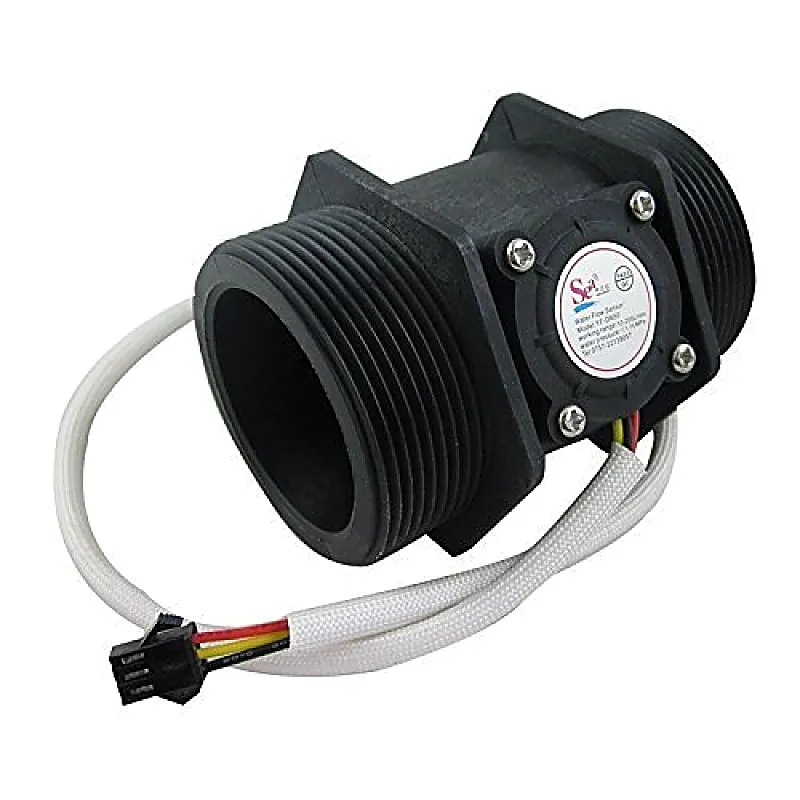

2 inch Water Flow Sensor - YF-DN50
2 inch Water Flow Sensor - YF-DN50
YF-DN50 is a large 2 inch diameter Water Flow meter Sensor that can be used to measure flow rate from 10 - 200 Liter/min. Specifications Of 2 inch WATER FLOW SENSOR YF-DN50:- Working voltage range:DC 5-18 V Waterproof, Heat resistance, pressure resistance, cold resistance, Easy to install. Flow rang
+ 18% GST (added at checkout)
In stock — 91 units ready
- Working voltage range:DC 5-18 V
- Waterproof, Heat resistance, pressure resistance, cold resistance, Easy to install.
- Flow range: 10-200 Liter per min
- Sensor: Hall effect
- Maximum current:15 mA (5 volt DC)
- Operating Temp: up to 80C,Operating humidity:35%-90%RH
- Allow compression: Water pressure 1.75 Mpa below
- Insulation resistance: >100M OHM
- Storage Temperature: -25-80C
- Storage humidity: 25%-95%RH
- Output Waveform: Square Wave,output pulse signal.
- Size: 92mm x 68mm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
YF-DN50 is a large 2 inch diameter Water Flow meter Sensor that can be used to measure flow rate from 10 - 200 Liter/min. Specifications Of 2 inch WATER FLOW SENSOR YF-DN50:- Working voltage range:DC 5-18 V Waterproof, Heat resistance, pressure resistance, cold resistance, Easy to install. Flow range: 10-200 Liter per min Sensor: Hall effect Maximum current:15 mA (5 volt DC) Operating Temp: up to 80C,Operating humidity:35%-90%RH Allow compression: Water pressure 1.75 Mpa below Insulation resistance: >100M OHM Storage Temperature: -25-80C Storage humidity: 25%-95%RH Output Waveform: Square Wave,output pulse signal. Size: 92mm x 68mm
