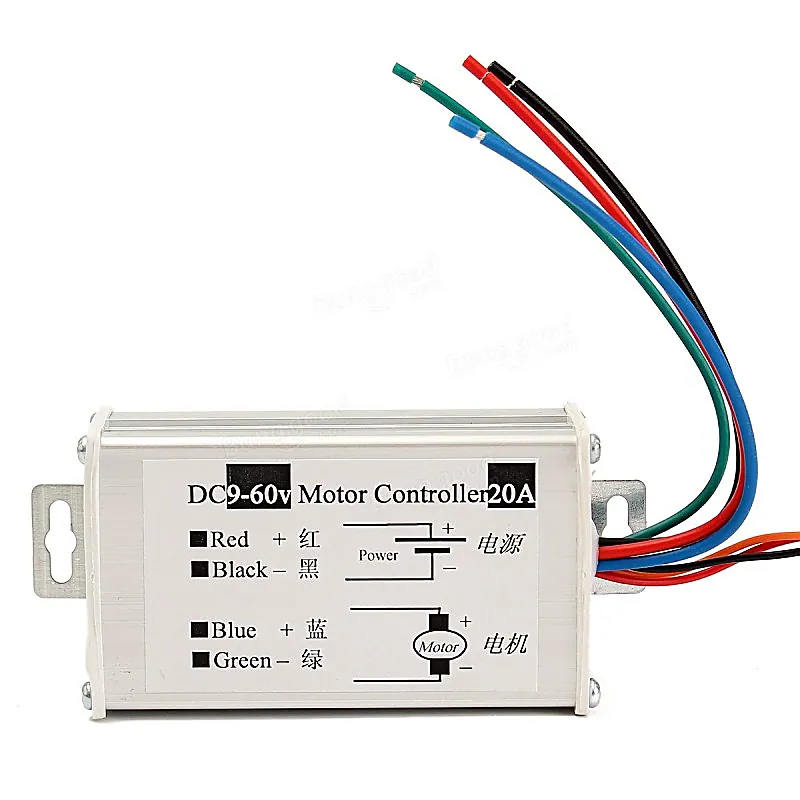

20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)

The 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V) is suitable for the DC brushed motor (or DC load) within 20A. It comes with the metal shell and connective label, which makes it very easy to install and use. It has potentiometer with adjust speed switch function, and button switch function. Note : Before you attempt to wire the controller, make sure power is off. WARNING : DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER. TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR. 1. Connect wires refer to the wiring diagram. 2. Turn on the power. 3. Adjust the potentiometer. Features : Adjustable speed range: 0%-100%. Speed adjustment way: Potentiometer. Output voltage: Linear under load. Speed control type: Basins. Output voltage: Load Linear Type: Adjusting flow The motor running condition adjustment: Forward /Stop / Reverse Reverse polarity protection: Yes. Suitable Motor: DC brush motors. Package Includes : 1 x20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V) Specifications: Driver Model 20A PWM DC Motor Speed Regulator Operating Voltage (VDC) 9 ~ 60 Peak Current (A) 20 Continuous Current (A) 18 Continuous power 1200W PWM frequency 25KHz. No. of Channels 1 Battery Protection Mode No Thermal Protection Yes LED Indicator Yes Cable Length (cm) 13 Cooling Fan No Arduino Sheild No- can be used with Wire connection Speed Control Yes Polarity Protection Yes Dimensions in mm (LxWxH) 90 x 50 x 35 Weight (gm) 135
