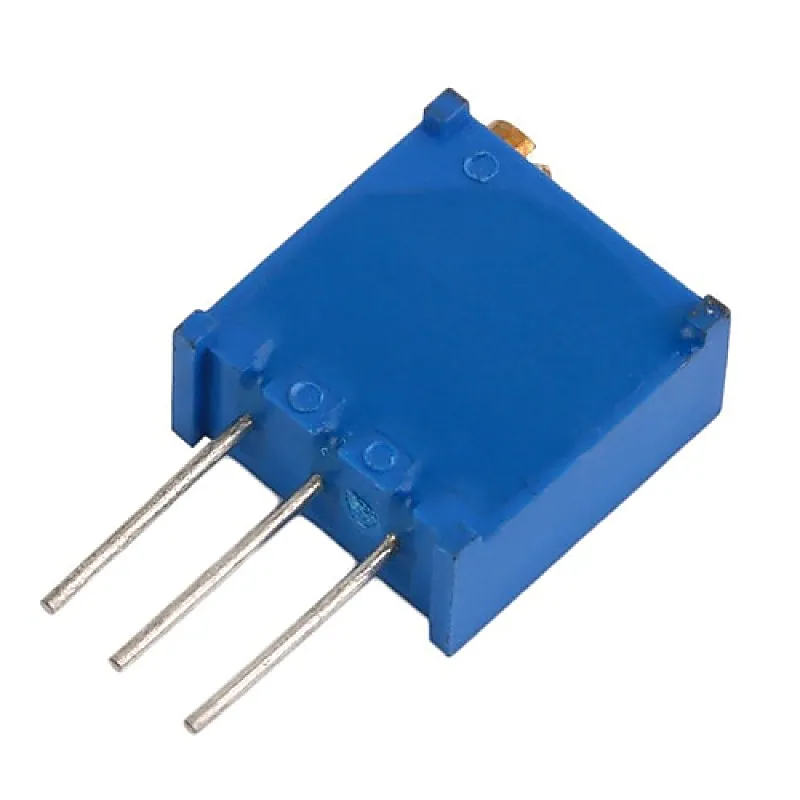

20K ohm Variable Resistor - Trimpot (3296 Package)
20K ohm Variable Resistor - Trimpot (3296 Package)
Trimpot is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin o
+ 18% GST (added at checkout)
In stock — 11 units ready
- Track Resistance: 20K ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 20K ohm
- Resistor Element Material: Variable Rotary Trimmer
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Trimpot is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated. Specifications:- Track Resistance: 20K ohm Resistance Tolerance: ± 5% Temperature Coefficient: ± 50ppm/°C Potentiometer Mounting: Through Hole Adjustment Type: Top Contact Resistance Variation +: 1% Full Power Rating Temperature: 85°C Lead Diameter: 0.5mm Operating Temperature Range: -55°C to +125°C Resistance: 20K ohm Resistor Element Material: Variable Rotary Trimmer
