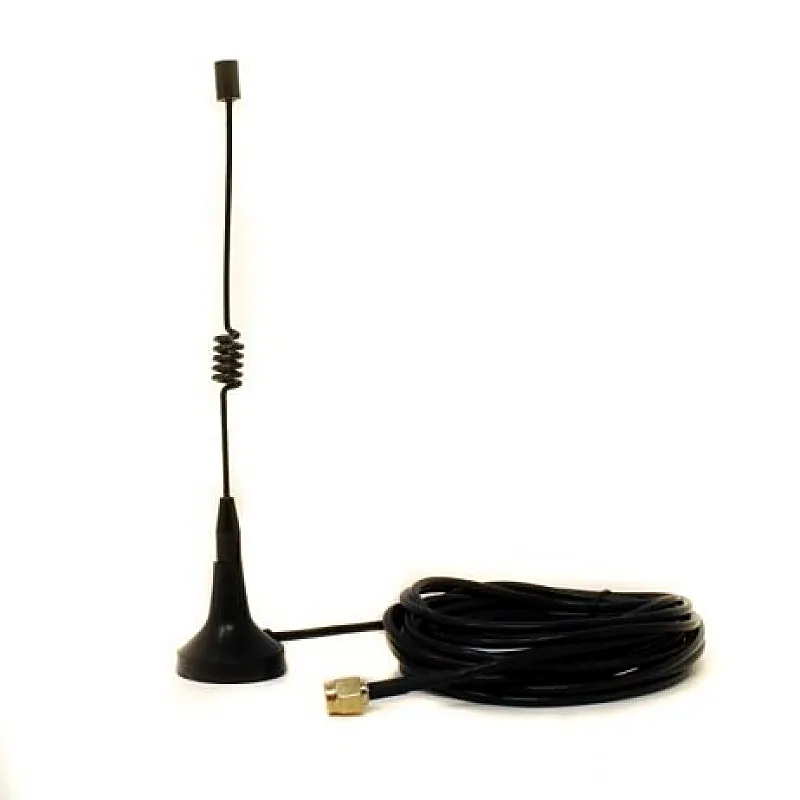

2400 - 2483 MHz 3dBi Magnetic Mount Antenna
2400 - 2483 MHz 3dBi Magnetic Mount Antenna
This is Magnetic Mount Antenna having a frequency of 2400 2483 MHz and gain of 3 dBi. This is v ery helpful for signal boosting. Magnetic mount antennas are commonly used for car and truck applications. The antennas magnetic base sticks securely to the metal of the vehicle. The metal surface of the
+ 18% GST (added at checkout)
In stock — 337 units ready
- Compact Size
- Low Cost
- Anodized Aluminium
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is Magnetic Mount Antenna having a frequency of 2400 2483 MHz and gain of 3 dBi. This is v ery helpful for signal boosting. Magnetic mount antennas are commonly used for car and truck applications. The antennas magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal. Application: 2.4 GHz Applications, Smart Meters Features: Compact Size Low Cost Anodized Aluminium Package Includes: 1 x 2400 2483 MHz 3 dBi Magnetic Mount Antenna Specifications :- Frequency (MHz) 2400 2500 MHz Gain 3 dBi Impedance () 50 VSWR < 2.0 Polarization Linear Power Handling (W) 10 HPBW H: 3600; V: 400 Operational Temperature -30 to 60 C Humidity 5 95% Housing Aluminum- Commercial Grade Dimension (mm) 50 x 32 Weight( g ) 50 Cable Length (Meter) 3
