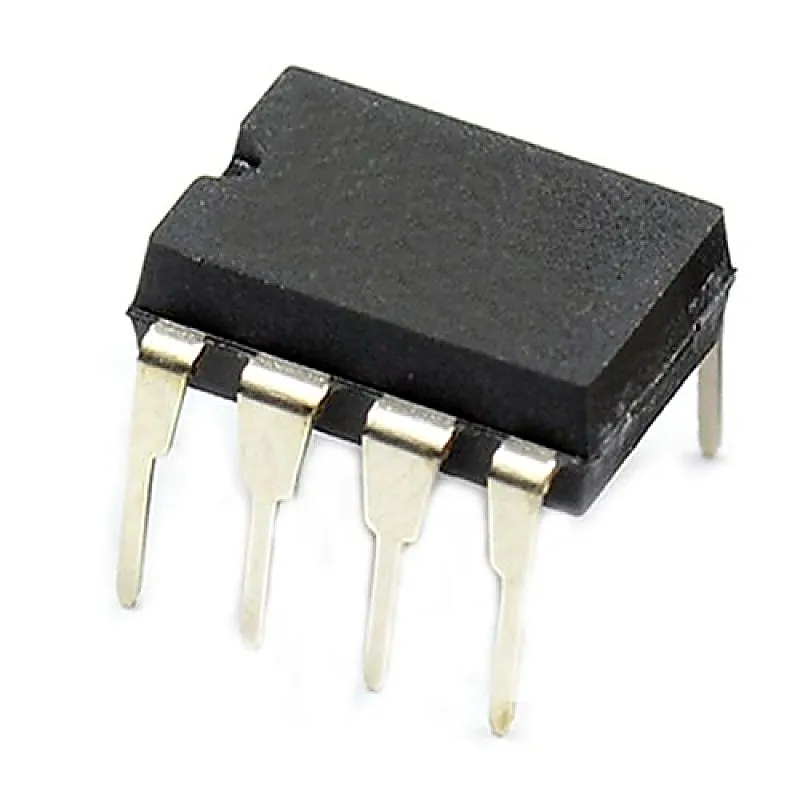

24C1024 1M bit Serial I2C Bus EEPROM IC DIP-8 Package

The 24C1024 provides 1,048,576 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 131,072 words of 8 bits each. The device’s cascadable feature allows up to 2 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low-voltage operation are essential. The devices are available in space saving 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead Lead less Array (LAP) and 8-ball dBGA packages. In addition, the entire family is available in 2.7V (2.7V to 5.5V) versions. Features:- • Low-voltage Operation – 2.7 (VCC = 2.7V to 5.5V) • Internally Organized 131,072 x 8 • 2-wire Serial Interface • Schmitt Triggers, Filtered Inputs for Noise Suppression • Bi-directional Data Transfer Protocol • 400 kHz (2.7V) and 1 MHz (5V) Clock Rate • Write Protect Pin for Hardware and Software Data Protection • 256-byte Page Write Mode (Partial Page Writes Allowed) • Random and Sequential Read Modes • Self-timed Write Cycle (5 ms Typical) • High Reliability – Endurance: 100,000 Write Cycles/Page – Data Retention: 40 Years • 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead LAP and 8-ball dBGATM Packages Specification:- Parameter Specification Voltage on Any Pin with Respect to Ground -1.0V to +7.0V Storage temperature -65°C to +150°C Operating Temperature -55°C to +125°C Maximum Operating Voltage 6.25V DC Output Current 5.0 mA Related Document:- 24C1024 IC Data Sheet
