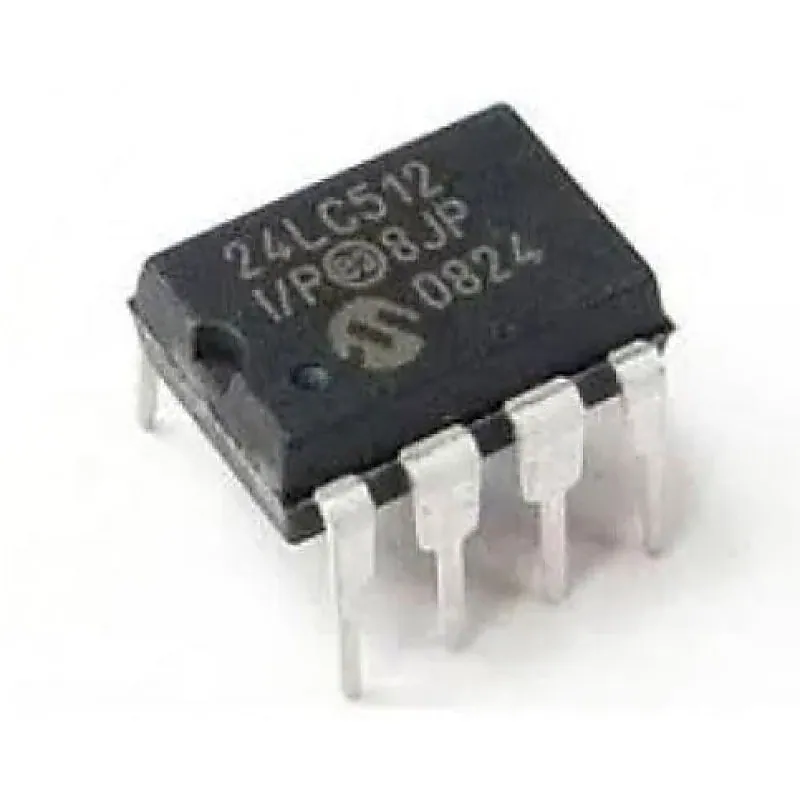

24LC512 24C512 512K bit Serial I2C Bus EEPROM IC DIP-8 Package

The 24LC512 is a 64K x 8 (512 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications and data acquisition. This device also has a page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads up to the 512K boundary. Functional address lines allow up to eight devices on the same bus, for up to 4 M bit address space. This device is available in the standard 8-pin plastic DIP, SOIJ, SOIC, TSSOP, DFN, and 14-lead TSSOP packages. . Features:- • Single Supply with Operation down to 2.5V • Low-Power CMOS Technology: - Active current 400 uA, typical - Standby current 100 nA, typical • 2-Wire Serial Interface, I2C™ Compatible • Cascadable for up to Eight Devices • Schmitt Trigger Inputs for Noise Suppression • Output Slope Control to Eliminate Ground Bounce • 100 kHz and 400 kHz Clock Compatibility • Page Write Time 5 ms max. • Self-Timed Erase/Write Cycle • 128-Byte Page Write Buffer • Hardware Write-Protect • ESD Protection >4000V • More than 1 Million Erase/Write Cycles • Data Retention > 200 years • Packages Include 8-lead PDIP, SOIJ, SOIC, TSSOP, DFN, Chip Scale and 14-lead TSSOP • Pb-Free and RoHS Compliant • Temperature Ranges: - Industrial (I): -40C to +85C - Automotive (E):-40C to +125C Specification:- Parameter Specification VCC 6.5V All inputs and outputs w.r.t. VSS -0.6V to VCC +1.0V Storage temperature -65°C to +150°C Ambient temperature with power applied -40°C to +125°C ESD protection on all pins ≥ 4 kV Related Document:- 24LC512 IC Datasheet
