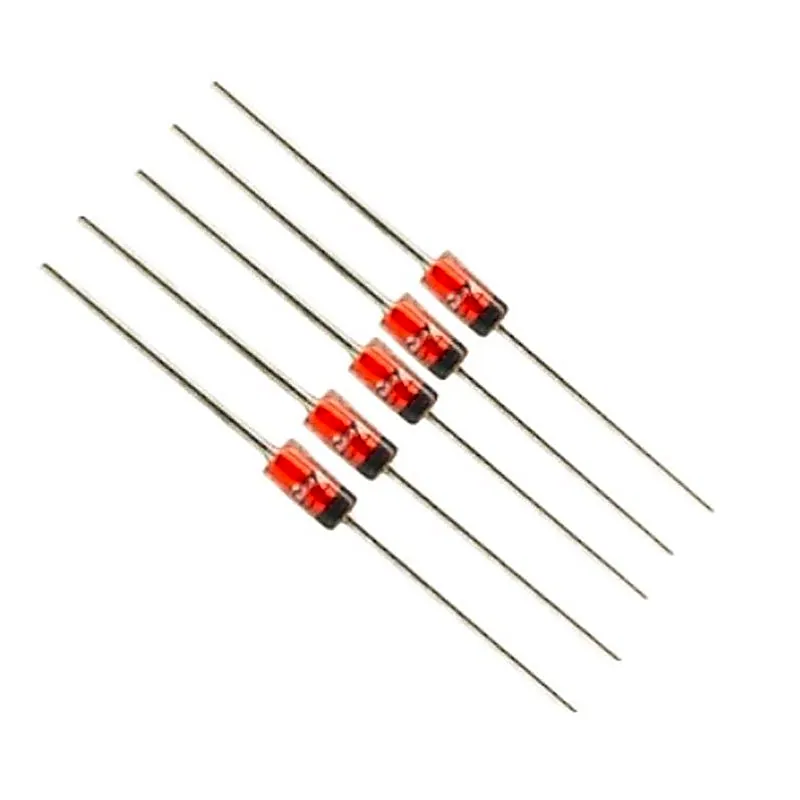

24V 1W Zener Diode - 5 Pieces Pack

24V 1W Zener Diode - 5 Pieces Pack Features:- • Silicon Planar Power Zener Diodes • For use in stabilizing and clipping circuits with high power rating. • Standard Zener voltage tolerance is ±10%. Add suffix “A” for ±5% tolerance. Other Zener voltages and tolerances are available upon request. • These diodes are also available in the MELF case with type designation ZM4728 thru ZM4764 Mechanical Data:- • Case: DO-41 Glass Case • Weight: approx. 0.35 g Specification:- Symbol Parameter Values Units Ptot Power Dissipation at Tamb = 25°C 1.0 Watts RΘJA Thermal Resistance Junction to Ambient Air 170 °C/W VF Forward Voltage at IF = 200 mA 1.2 V TJ Maximum Junction Temperature 175 °C TSTG Storage Temperature Range – 65 to +175 °C
