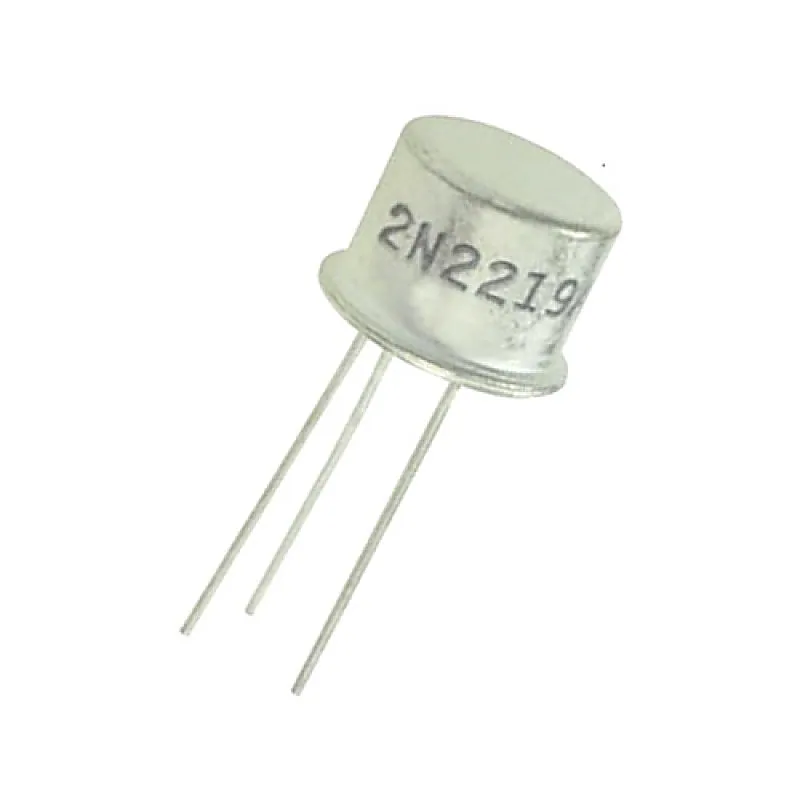

2N2219 Small Signal NPN Switching Transistor TO-39 Metal Package

2N2219 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal Can Package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 75VDC Collector-Emitter Voltage (VCEO) 50VDC Emitter-Base Voltage (VEBO) 6VDC Continuous Collector Current (IC) 800mA Input Capacitance (Cib) 25pF Output Capacitance (Cob) 8pF DC Current Gain (hFE) 35 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 3W Related Documents 2N2219 Transistor Metal Datasheet
