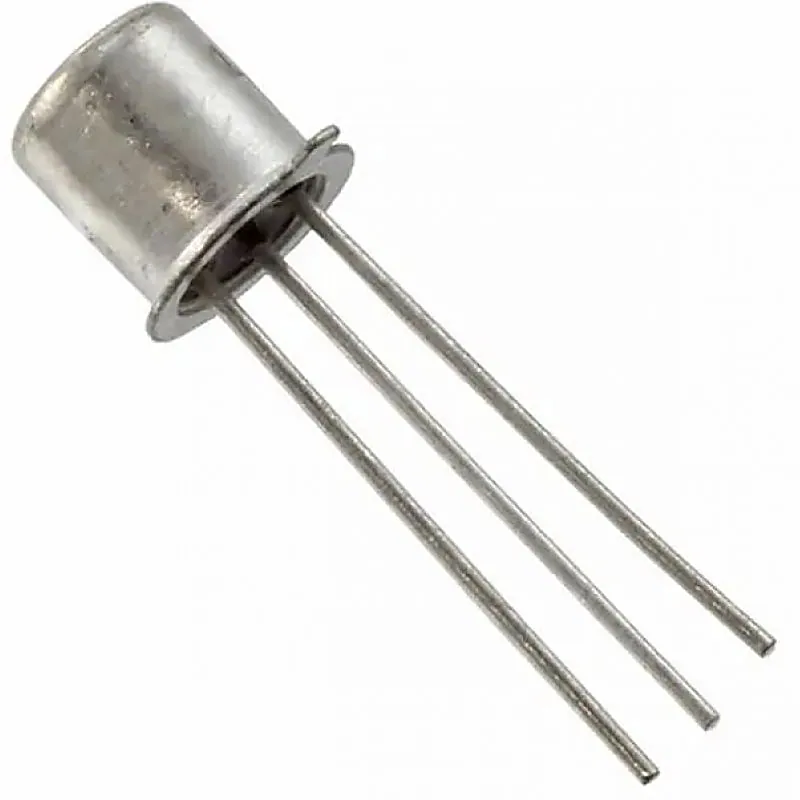

2N2222 NPN Bipolar Transistor TO-18 Metal Package

2N2222 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal Can Package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 60V Collector-Emitter Voltage (VCEO) 30V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 800mA Input Capacitance (Cib) 30pF Output Capacitance (Cob) 8pF DC Current Gain (hFE) 300 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 1.2W Related Documents:- 2N2222 Transistor Metal Datasheet
