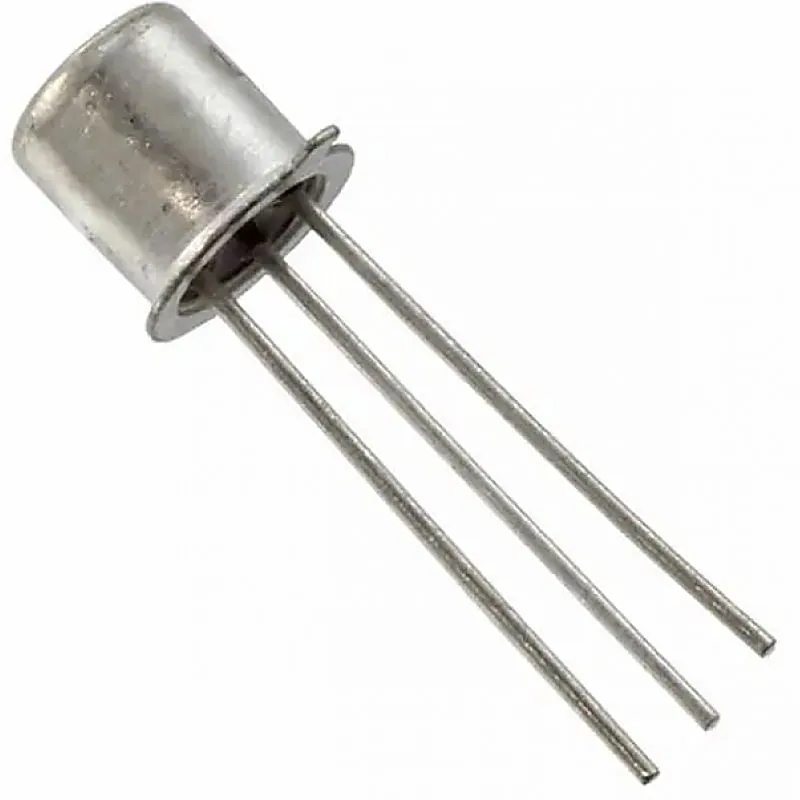

2N2369 NPN Bipolar Transistor TO-18 Metal Package

2N2369 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal TO-18 Can Package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 40VDC Collector-Emitter Voltage (VCEO) 15VDC Emitter-Base Voltage (VEBO) 4.5VDC Continuous Collector Current (IC) 200mA Input Capacitance (Cib) 4pF Output Capacitance (Cob) 4pF DC Current Gain (hFE) 40-120 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 0.36W Related Documents:- 2N2369 Transistor Metal Datasheet
