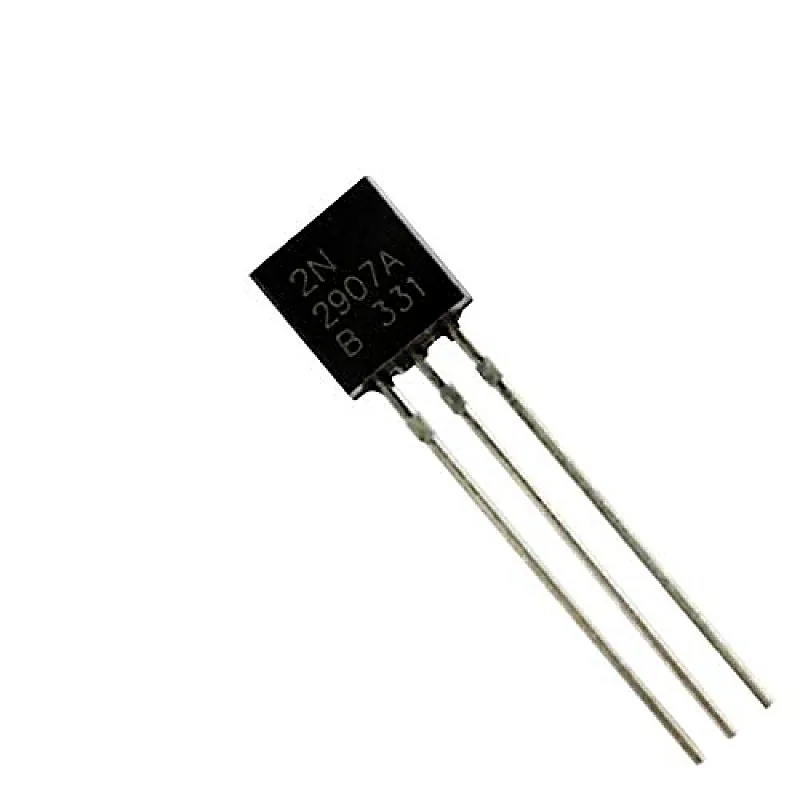

2N2907A PNP Switching Transistor TO-92 Plastic Package

2N2907A is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Plastic TO-92 package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 60V Collector-Emitter Voltage (VCEO) 60V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 600mA Input Capacitance (Cib) 30pF Output Capacitance (Cob) 8pF DC Current Gain (hFE) 100-300 Operating Temperature Range -55 - 200°C Power Dissipation (PD) 625mW Related Documents:- 2N2907A Transistor Plastic Datasheet
