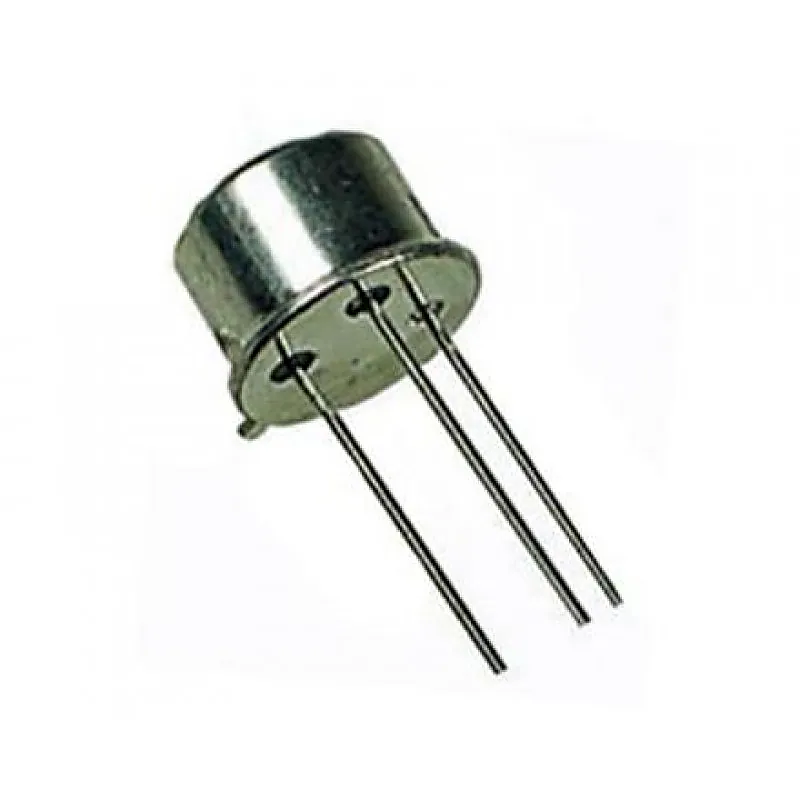

2N3019 NPN Silicon Planar Transistor TO-39 Metal Package

2N3019 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal TO-39 can package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 140VDC Collector-Emitter Voltage (VCEO) 80VDC Emitter-Base Voltage (VEBO) 7VDC Continuous Collector Current (IC) 1A Input Capacitance (Cib) 60pF Output Capacitance (Cob) 12pF DC Current Gain (hFE) 100-300 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 5W Related Documents:- 2N3019 Transistor Metal Datasheet
