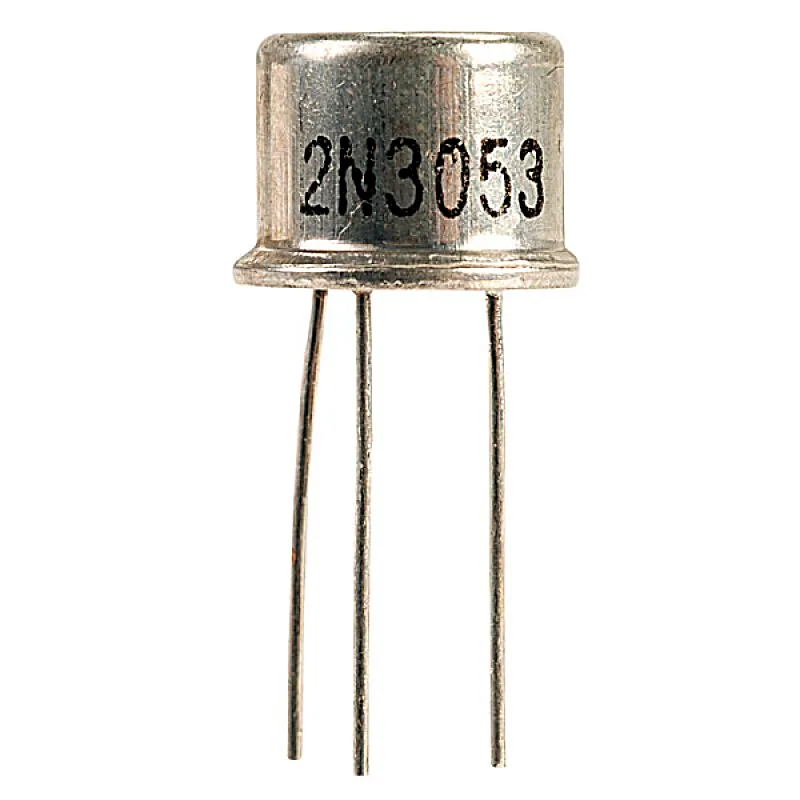

2N3053 NPN Silicon Planar Transistor 40V 700mA TO-39 Metal Package

2N3053 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal TO-39 can package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 60VDC Collector-Emitter Voltage (VCEO) 40VDC Emitter-Base Voltage (VEBO) 5VDC Continuous Collector Current (IC) 700mA Input Capacitance (Cib) 80pF Output Capacitance (Cob) 15pF DC Current Gain (hFE) 50-250 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 5W Related Documents:- 2N3053 Transistor Metal Datasheet
