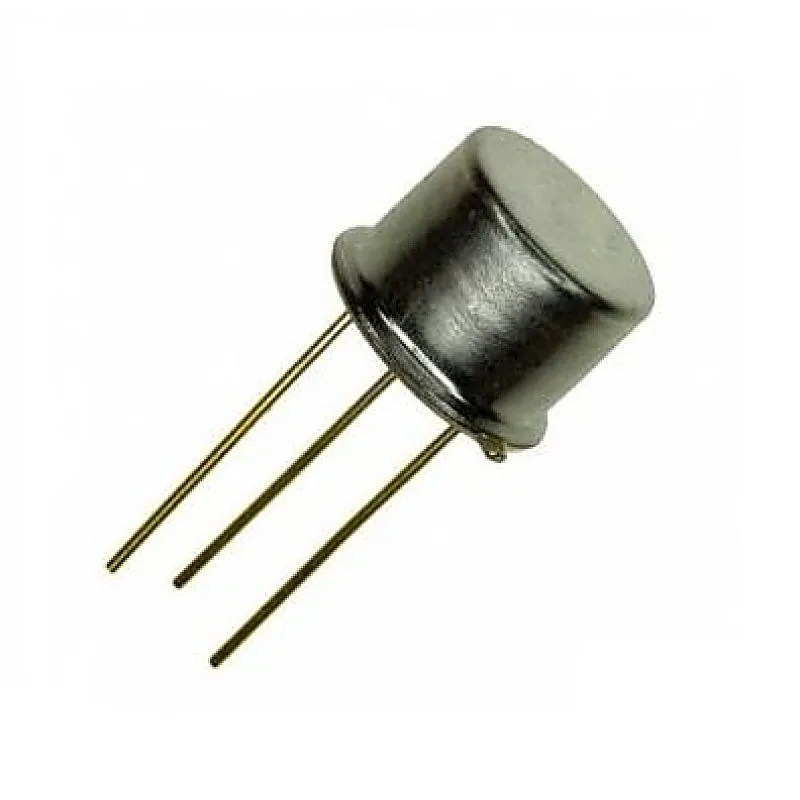

2N3439 NPN Bipolar Low Power Transistor 350V 1A TO-39 Metal Package
2N3439 NPN Bipolar Low Power Transistor 350V 1A TO-39 Metal Package
The 2N3439 is silicon epitaxial planar NPN transistors in jedec TO-39 metal case designed for use in consumer and industrial line-operated applications. These devices are particularly suited as drivers in high-voltage low current inverters, switching and series regulators. Features:- • Metal TO-39 c
+ 18% GST (added at checkout)
In stock — 2157 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 2N3439 is silicon epitaxial planar NPN transistors in jedec TO-39 metal case designed for use in consumer and industrial line-operated applications. These devices are particularly suited as drivers in high-voltage low current inverters, switching and series regulators. Features:- • Metal TO-39 can package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 450V Collector-Emitter Voltage (VCEO) 350V Emitter-Base Voltage (VEBO) 7V Continuous Collector Current (IC) 1A Base Current (IB) 0.5A Transition Frequency (fT) 15MHz DC Current Gain (hFE) 40-160 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 10W Related Documents:- 2N3439 Transistor Metal Datasheet
