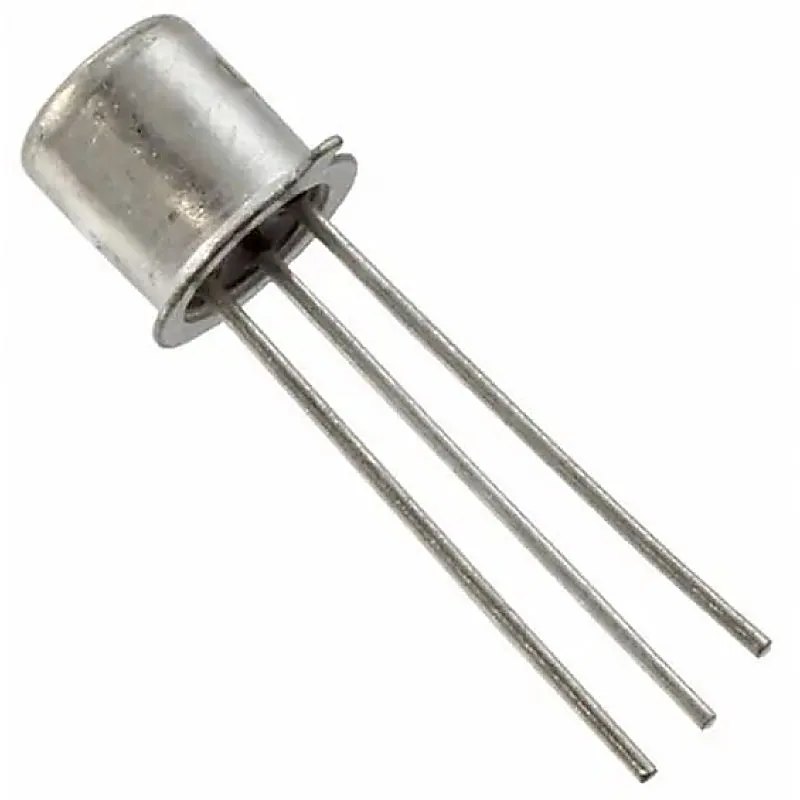

2N4393 N-Channel JFET 40V 30mA TO-18 Metal Package

2N4393 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal can package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity N-Channel Gate-Source Breakdown Voltage (BVGSS) 40V Drain-Source Current (IDSS) 30mA Drain-Source Resistance (Rds On) 100Ohms Input Capacitance (Ciss) 14pF Gate to Source Forward Voltage (VGS(F)) 1V Drain to Source ON Voltage (VDS(ON)) 0.4V Reverse Transfer Capacitance (Crss) 3.5pF Operating Temperature Range -55 - 125°C Power Dissipation (PD) 1.8W Related Documents:- 2N4393 Transistor Metal Datasheet
