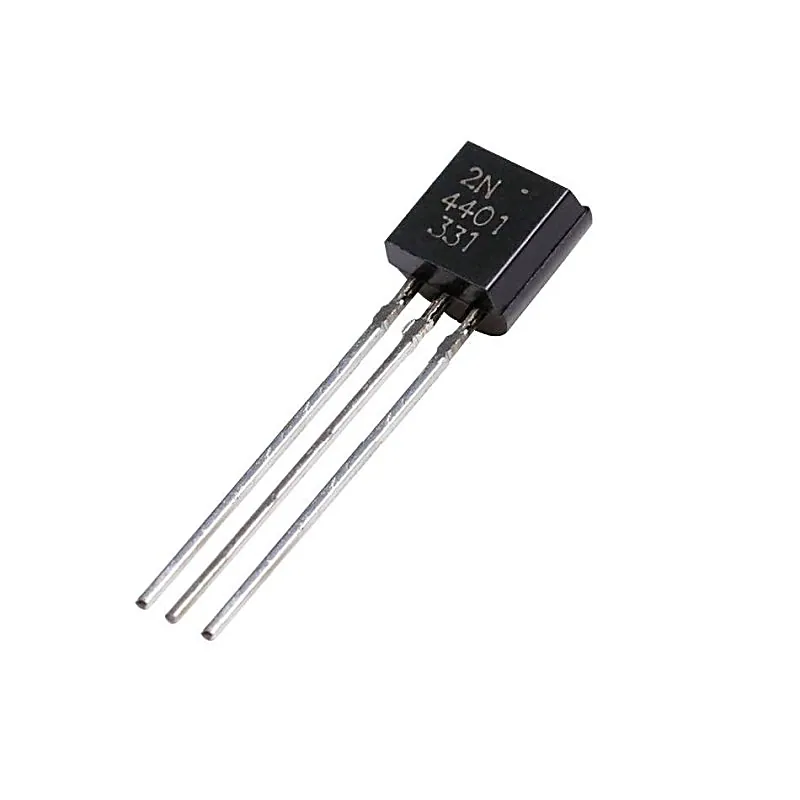

2N4401 NPN General Purpose Transistor 40V 600mA TO-92 Package - 5 Pieces Pack

2N4401 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 60VDC Collector-Emitter Voltage (VCEO) 40VDC Emitter-Base Voltage (VEBO) 6VDC Continuous Collector Current (IC) 600mA Collector−Base Capacitance (Ccb) 6.5pF Transition Frequency (fT) 250MHz DC Current Gain (hFE) 100-300 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 1.5W Related Documents:- 2N4401 Transistor Datasheet
