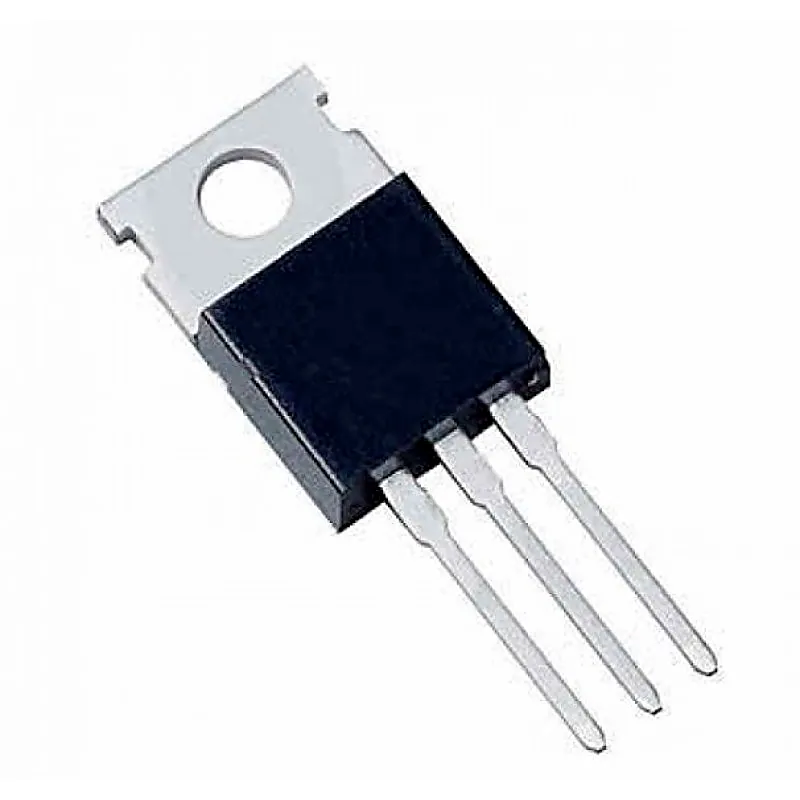

2N5294 NPN Power Transistor 70V 4A TO-220 Package

2N5294 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 80V Collector-Emitter Voltage (VCEO) 70V Continuous Base Current (IB) 2A Continuous Collector Current (IC) 4A Thermal Resistance 70°C/W Emitter cut-off current (IEBO) 1mA DC Current Gain (hFE) 30-120 Operating Temperature Range -65 - 150°C Power Dissipation (PD) 36W Related Documents:- 2N5294 Transistor Datasheet
