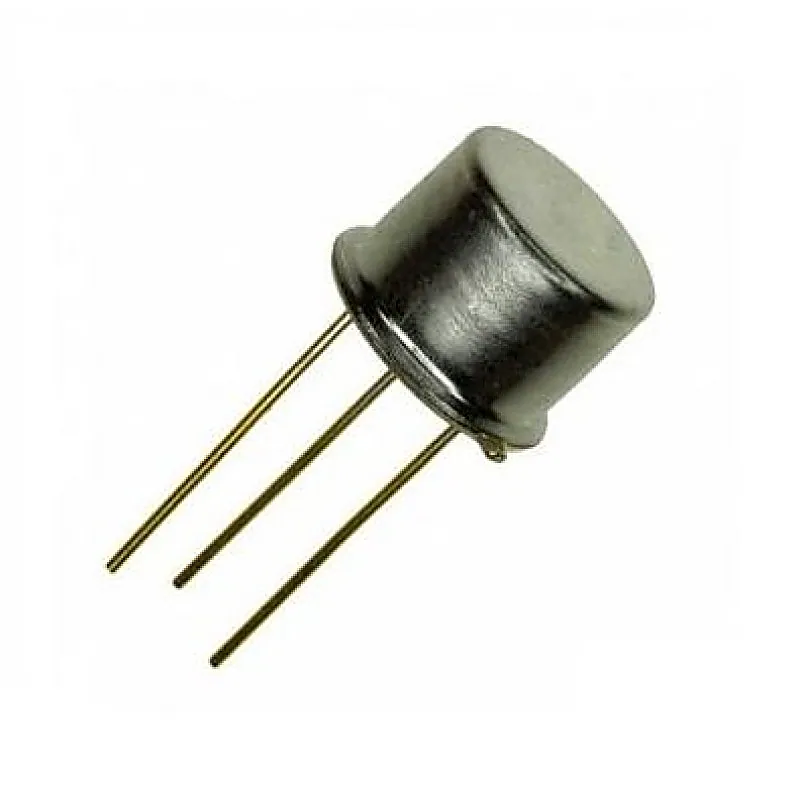

2N5416 PNP High Voltage Transistor 300V 1A TO-39 Metal Package

2N5416 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal TO-39 can package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 350V Collector-Emitter Voltage (VCEO) 300V Emitter-Base Voltage (VEBO) 6V Continuous Collector Current (IC) 1A Output Capacitance (Cobo) 15pF Collector-Emitter Breakdown Voltage (V(BR)CEO) 300V DC Current Gain (hFE) 30-120 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 10W Related Documents:- 2N5416 Transistor Metal Datasheet
