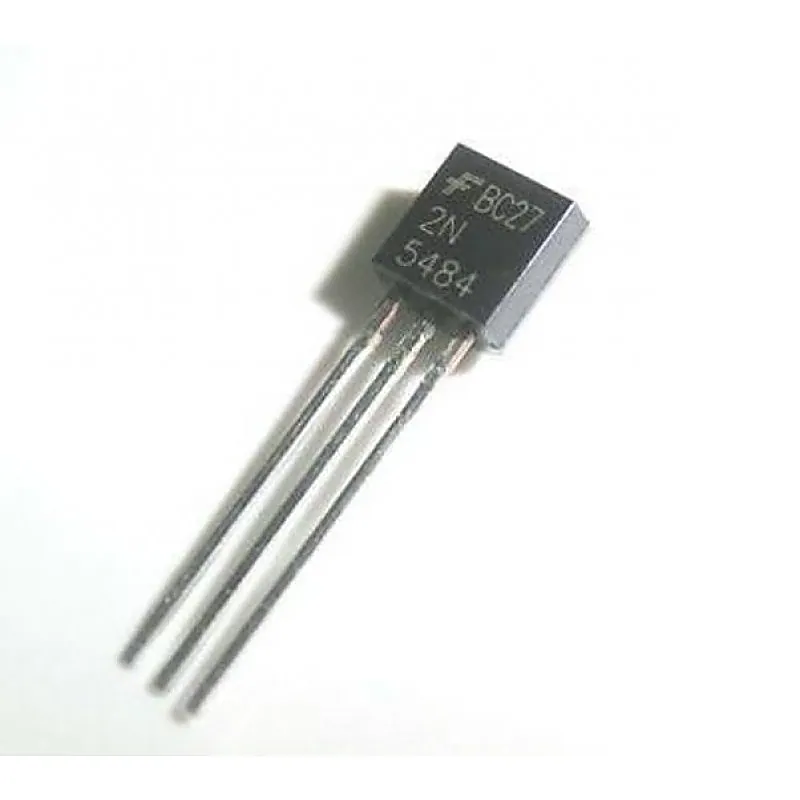

2N5484 N-Channel RF Amplifier JFET 25V 10mA TO-92 Package

2N5484 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity N-Channel Drain-Gate Voltage (VDG) 25V Gate-Source Voltage (VGS) 25V Forward Gate Current (IGF) 10mA Input Capacitance (Ciss) 5pF Output Capacitance (Coss) 2pF Gate-Source Breakdown Voltage (V(BR)GSS) 25V Reverse Transfer Capacitance (Crss) 1pF Operating Temperature Range -55 - 150°C Power Dissipation (PD) 350mW Related Documents:- 2N5484 JFET Datasheet
