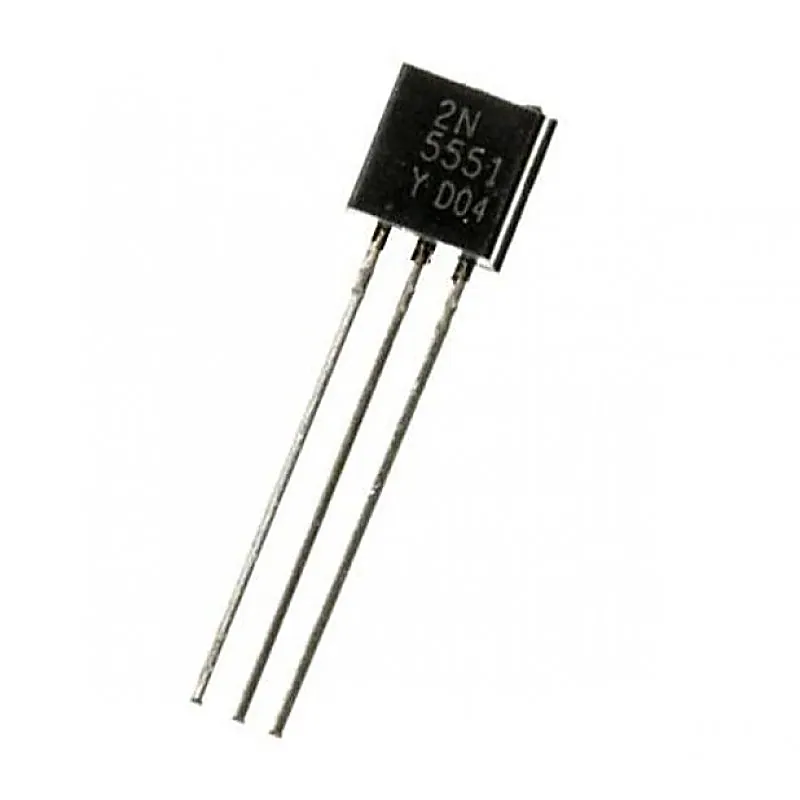

2N5551 NPN General Purpose Amplifier Transistor 160V 600mA TO-92 Package - 5 Pieces Pack

2N5551 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 180V Collector-Emitter Voltage (VCEO) 160V Emitter-Base Voltage (VEBO) 6V Continuous Collector Current (IC) 600mA Output Capacitance (Cobo) 6pF Transition Frequency (fT) 100MHz DC Current Gain (hFE) 80-250 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 625mW Related Documents:- 2N5551 Transistor Datasheet
