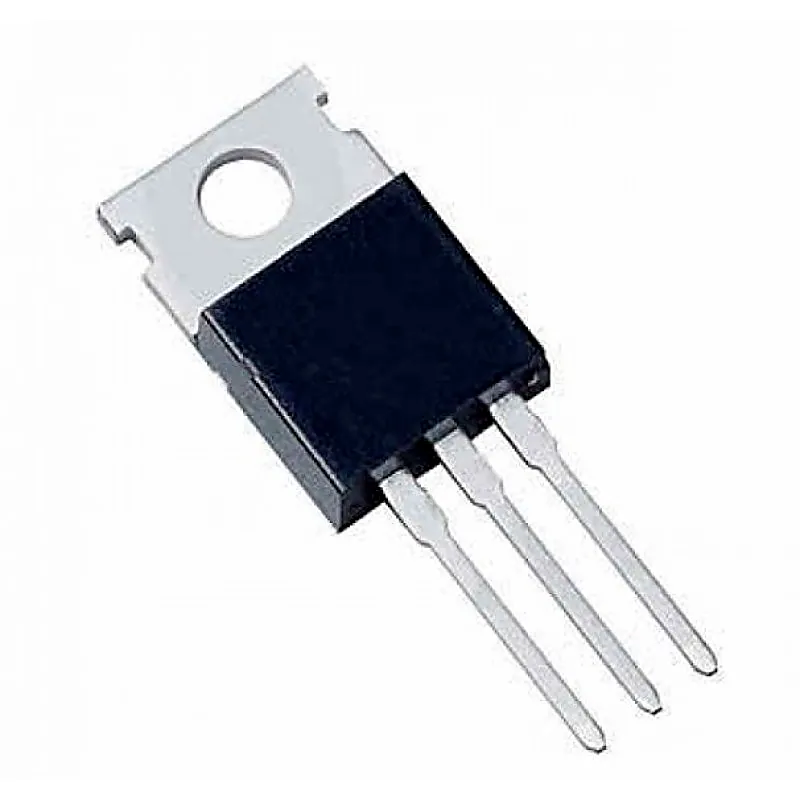

2N6109 PNP Bipolar Power Transistor 50V 7A TO-220 Package

2N6109 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 60VDC Collector-Emitter Voltage (VCEO) 50VDC Emitter-Base Voltage (VEBO) 5VDC Continuous Collector Current (IC) 7A Output Capacitance (Cobo) 250pF Transition Frequency (fT) 10MHz DC Current Gain (hFE) 20 Operating Temperature Range -65 - 150°C Power Dissipation (PD) 40W Related Documents:- 2N6109 Transistor Datasheet
