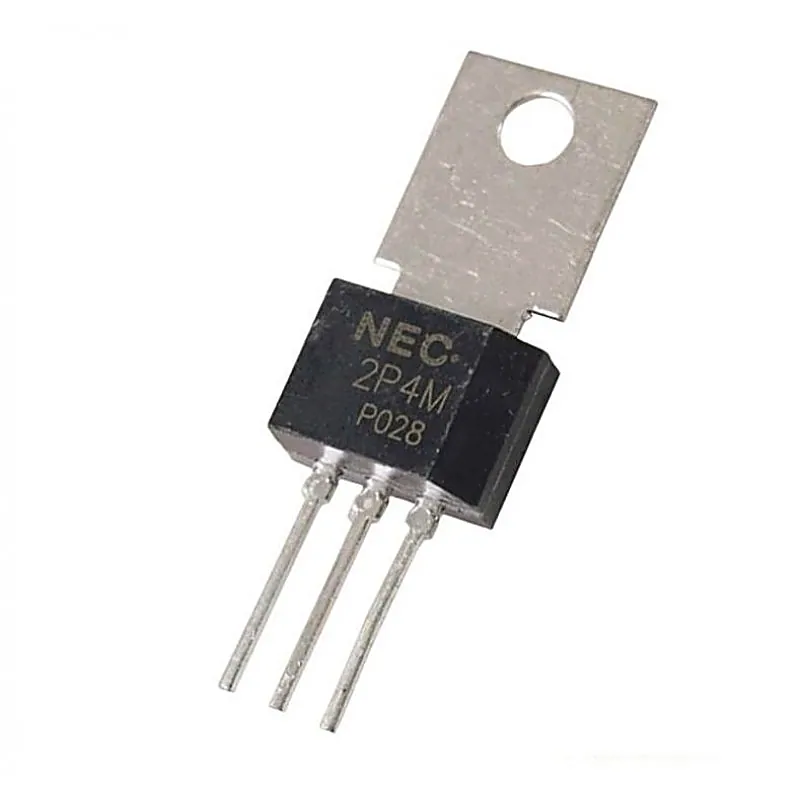

2P4M - 400V - 2A SCR - Thyristor

The 2P4M to 2P6M are P-gate all diffused plastic molded type SCR granted average on-state current 2 Amps (Tc 77 with rated voltages up to 600 volts. Features:- • Easy installation by its miniature size and thin electrode leads • Less holding Current distribution provides free application design • Low cost because Of mass-production. Applications:- • Electric blanket, Electronic jar, Various temperature con • Electric sewing machine, Speed control Of miniature type motor • Light display equipment, Lamp dimmer such as a display for entertainment • Automatic gas lighter, Battery charger • Solid State static switches etc. Specifications:- Symbol Parameter Ratings Units VRSM Non-Repetitive Peak Reverse Voltage 500 V VDSM Non-Repetitive Peak Off-state Voltage 500 V VRRM Repetitive Peak Reverse Voltage 400 V VDRM Repetitive Peak Off-state Voltage 400 V IT(AV) On-state Current 2(Tc=77 °C Single Phase (1/2 wave) A ITSM Surge Non-Repetitive On-state Current 20 A PGM Peak Gate Power Dissipation 0.5 (f ≥ 50 Hz, Duty≤ 10%) W PG(IAV) Average Gate Power Dissipation 0.1 W IFGM Peak Gate Forward Current 0.2 (f ≥ 50 Hz, Duty≤ 10%) A VRGM Peak Gate Reverse Voltage 6 V Tj Junction Temperature -40 to 125 °C Tstg Storage Temperature -50 to 150 °C Weight 1.4 g Related Document:- 2P4M Data Sheet
