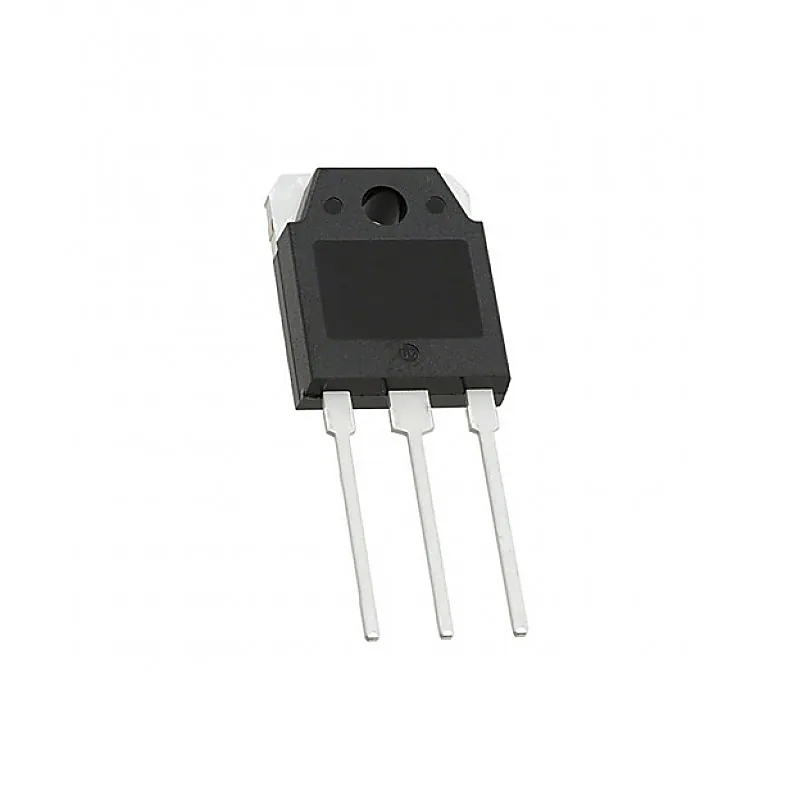

2SC3320 NPN High Voltage Switching Transistor 400V 15A TO-3PN Package

2SC3320 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 500V Collector-Emitter Voltage (VCEO) 400V Emitter-Base Voltage (VEBO) 7V Continuous Collector Current (IC) 15A Base Current (IB) 5A Emitter Cut-Off Current (IEBO) 1mA DC Current Gain (hFE) 10 Operating Temperature Range -65 - 150°C Collector Power Dissipation (PC) 80W Related Documents:- 2SC3320 Transistor Datasheet
