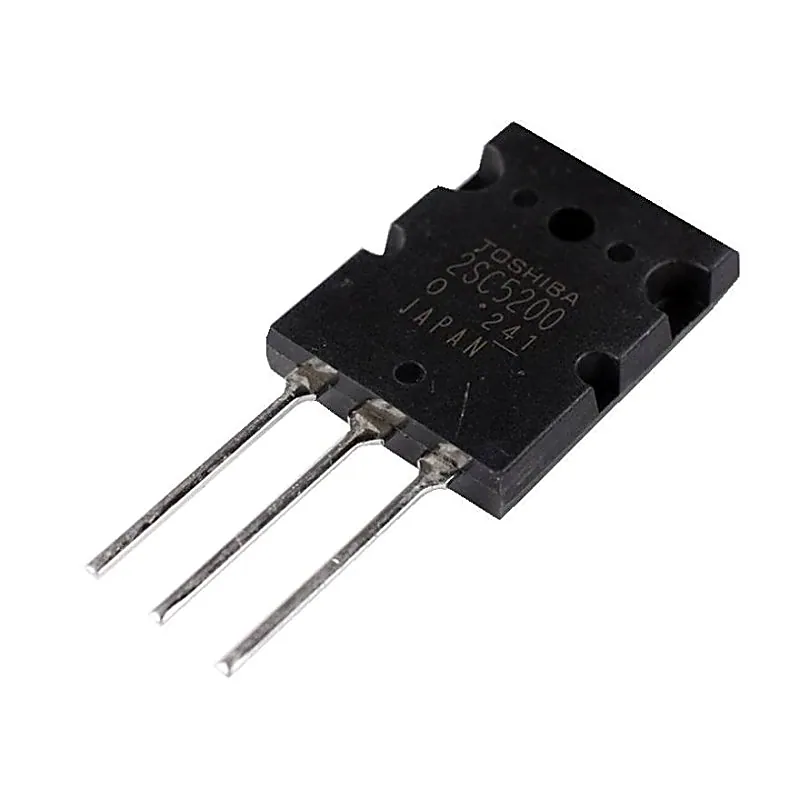

2SC5200 NPN Power Amplifier Transistor 230V 15A TO-3PL Package
2SC5200 NPN Power Amplifier Transistor 230V 15A TO-3PL Package
2SC5200 NPN Transistor with 1.5V Base and 15V Collector Current is type of bipolar transistors consisting of a layer of P-doped semiconductor (base) between two N-doped layers. A small current entering the base is amplified to produce a large collector and emitter current. They are Used in Mobile Ph
+ 18% GST (added at checkout)
In stock — 1549 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
2SC5200 NPN Transistor with 1.5V Base and 15V Collector Current is type of bipolar transistors consisting of a layer of P-doped semiconductor (base) between two N-doped layers. A small current entering the base is amplified to produce a large collector and emitter current. They are Used in Mobile Phones, Industrial Control, Television and Flip-flops, High Frequency Application Such as Radio Frequency Audio Circuit. Features:- • High Fidelity Audio Frequency Amplifier Output. • Low Harmonic Distortion, Large Current Capability and High Transition Frequency. • Use in 100W High Fidelity Audio Amplifier’s Output Stage. Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 230V Collector-Emitter Voltage (VCEO) 230V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 15A Base Current (IB) 1.5A Transition Frequency (fT) 30MHz DC Current Gain (hFE) 55-160 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 150W Related Documents :- 2SC5200 Transistor Datasheet
