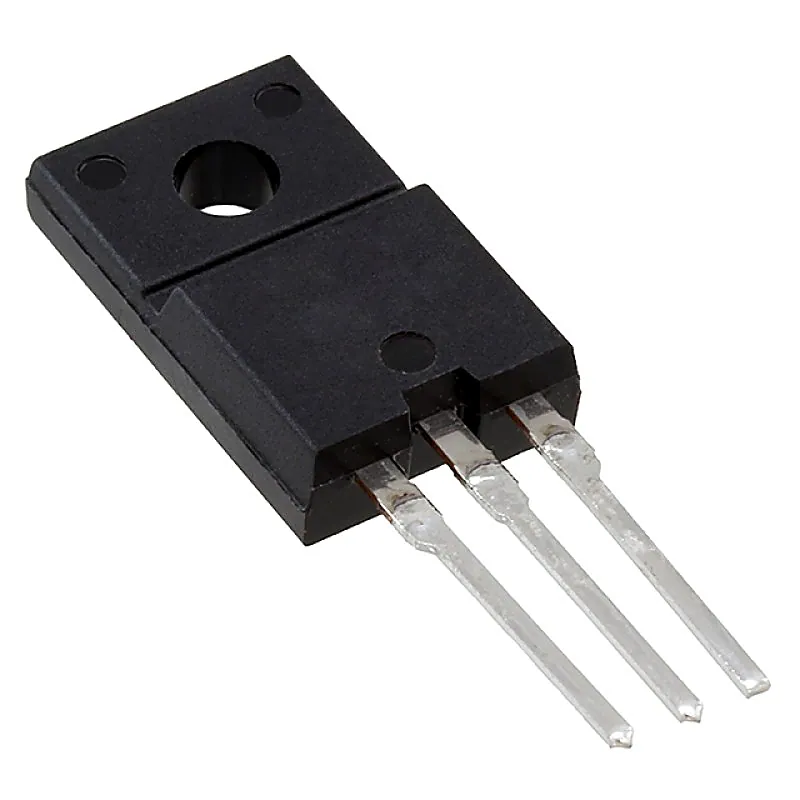

2SD1594 NPN Power Transistor 100V 7A TO-220F Package

2SD1594 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 150V Collector-Emitter Voltage (VCEO) 100V Emitter-Base Voltage (VEBO) 7V Continuous Collector Current (IC) 7A Base Current (IB) 3.5A Collector current-Peak (ICP) 15A DC Current Gain (hFE) 40-240 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 40W Related Documents:- 2SD1594 Transistor Datasheet
