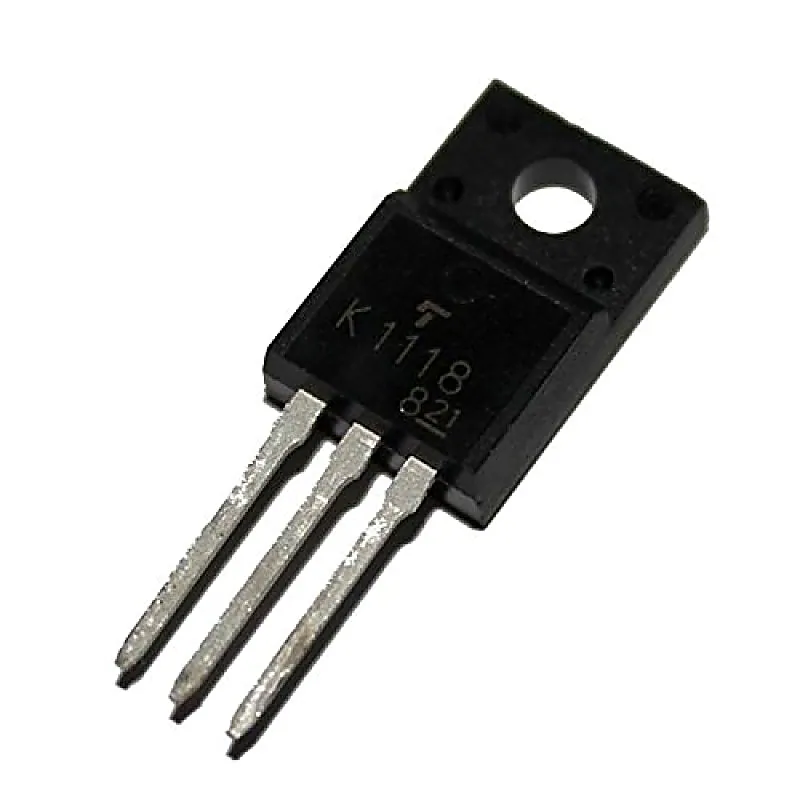

2SK1118 MOSFET - 600V 6A N-Channel Power MOSFET TO-220F Package
2SK1118 MOSFET - 600V 6A N-Channel Power MOSFET TO-220F Package
2SK1118 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and with
+ 18% GST (added at checkout)
In stock — 313 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
2SK1118 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Advanced Process Technology • Fast Switching • Fully Avalanche Rated • Lead-Free Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 600V Collector Current (Ic) 6A Drain-Source Resistance (Rds On) 1.25Ohms Gate-Source Voltage (Vgs) 3.5V Configuration Single Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 45W Related Documents:- 2SK1118 MOSFET Datasheet
