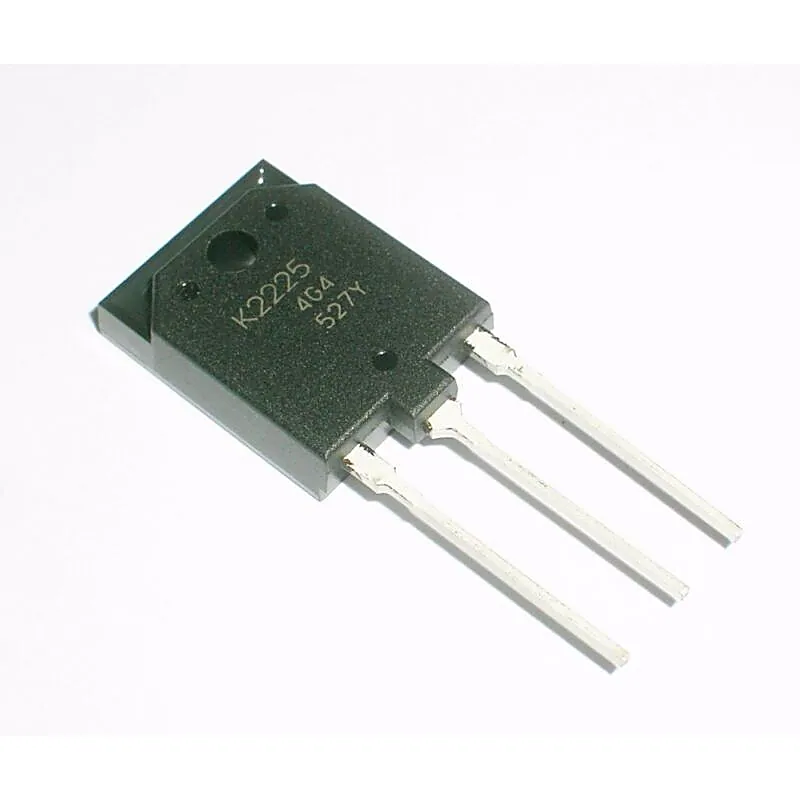

2SK2225 MOSFET - 1500V 2A N-Channel Power MOSFET TO-3PFM Package
2SK2225 MOSFET - 1500V 2A N-Channel Power MOSFET TO-3PFM Package
2SK2225 utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for u
+ 18% GST (added at checkout)
In stock — 230 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
2SK2225 utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications Features:- • High breakdown voltage VDSS = 1500 V • High speed switching • Low drive current • No secondary breakdown • Suitable for switching regulator, DC-DC converter and motor driver Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 1500V Continuous Drain Current (Id) 2A Drain-Source Resistance (Rds On) 12Ohms Gate-Source Voltage (Vgs) 20V Configuration Single Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 50W Related Documents:- 2SK2225 MOSFET Datasheet
