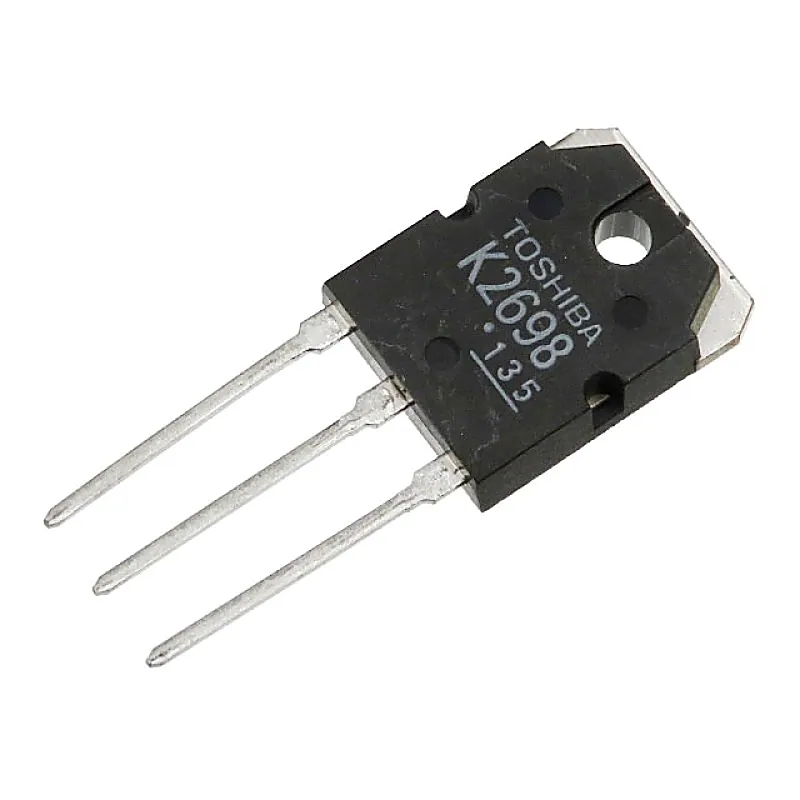

2SK2698 MOSFET - 500V 15A N-Channel Power MOSFET TO-3PN Package
2SK2698 MOSFET - 500V 15A N-Channel Power MOSFET TO-3PN Package
2SK2698 N-Channel enhancement mode power field effect transistors are produced using Toshiba proprietary, planar stripe ,DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance , provide superior switching performance, and withstand high energy pulse in
+ 18% GST (added at checkout)
In stock — 45 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
2SK2698 N-Channel enhancement mode power field effect transistors are produced using Toshiba proprietary, planar stripe ,DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance , provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supplies. Features:- • Low drain−source ON resistance • High forward transfer admittance • Low leakage current • Enhancement mode Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 500V Continuous Drain Current (Id) 15A Drain-Source Resistance (Rds On) 0.35Ohms Gate-Source Voltage (Vgs) 30V Gate Charge (Qg) 58 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 150W Related Documents:- 2SK2698 MOSFET Datasheet
