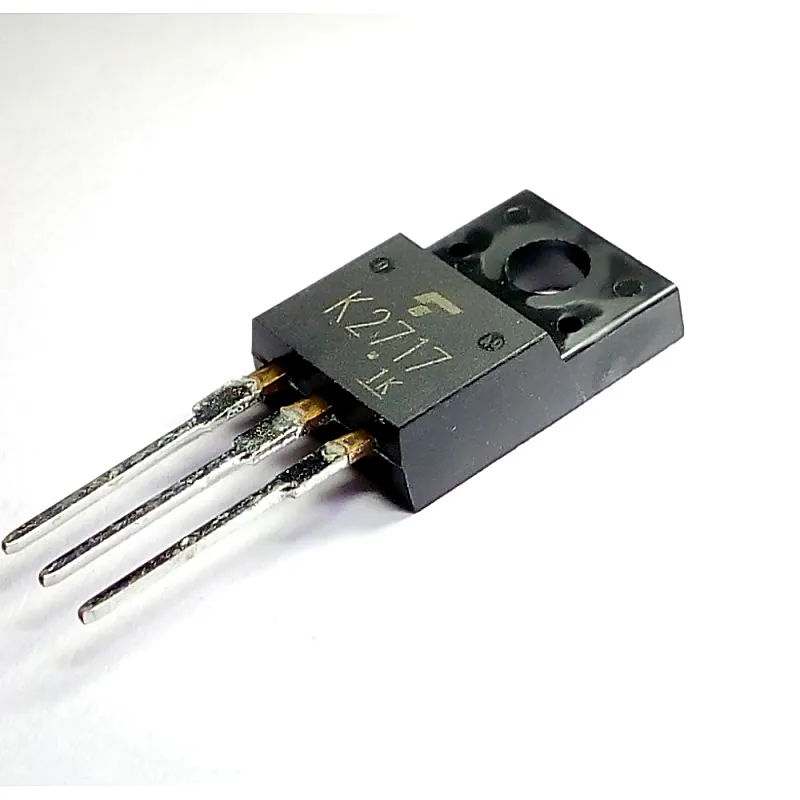

2SK2717 MOSFET - 900V 5A N-Channel Power MOSFET TO-220F Package
2SK2717 MOSFET - 900V 5A N-Channel Power MOSFET TO-220F Package
2SK2717 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and with
+ 18% GST (added at checkout)
In stock — 479 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
2SK2717 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Low drain−source ON resistance • High forward transfer admittance • Low leakage current • Enhancement mode Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 900V Continuous Drain Current (Id) 5A Drain-Source Resistance (Rds On) 2.5Ohms Gate-Source Voltage (Vgs) 30V Gate Charge (Qg) 45 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 45W Related Documents:- 2SK2717 MOSFET Datasheet
