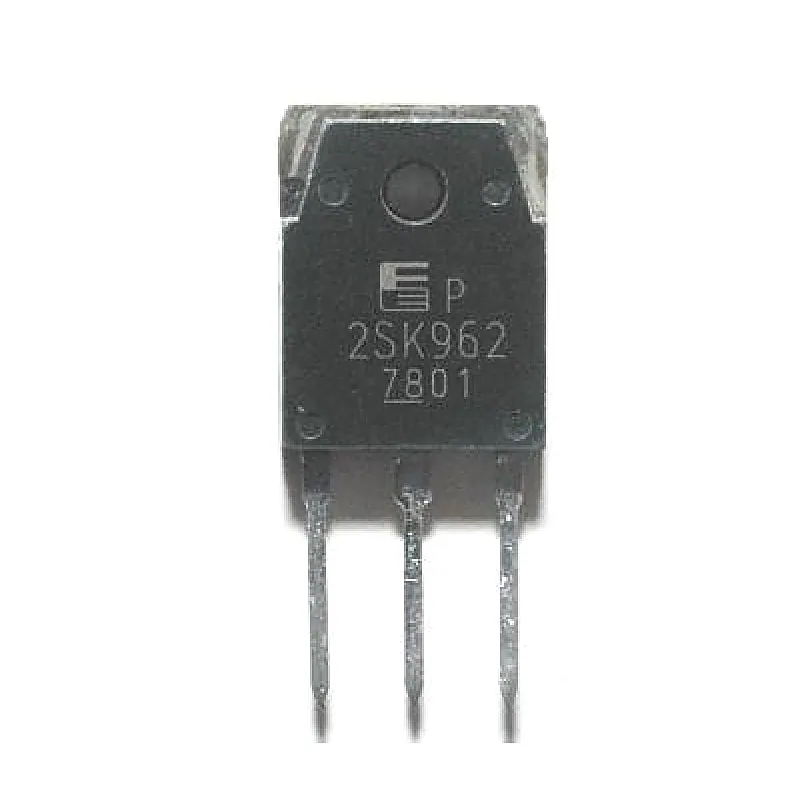

2SK962 MOSFET - 900V 8A N-Channel Silicon Power MOSFET TO-3P Package
2SK962 MOSFET - 900V 8A N-Channel Silicon Power MOSFET TO-3P Package
2SK962 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withs
+ 18% GST (added at checkout)
In stock — 252 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
2SK962 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features • High speed switching • Low on-resistance • No secondary breakdown • Low driving power • High voltage • Avalanche-proof Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 900V Continuous Drain Current (Id) 8A Drain-Source Resistance (Rds On) 2Ohms Gate-Source Voltage (Vgs) 20V Configuration Single Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 150W Related Documents 2SK962 Mosfet Datasheet
